BUSINESS INTRODUCTION
Our professional technical team evaluates and analyzes your mold issues in depth, provides mold opening recommendations and modification drawings to help you save development costs and time.
Evaluate
Mold Issues
Assess and analyze the mold problems
Provide
Mold Suggestions
Offer mold opening suggestions
Revise
Drawings
Modify problem drawings
ORDER PROCESS
1
Upload Drawings
Support STP/STEP format
2
Fill in Parameters
Material, color, surface finish requirements
3
Download Report
Fastest Report Ready in 30 Minutes
PRICING STANDARDS
Evaluate
Mold Issues
$0FREE
LIMITED TIME
LIMITED TIME
Revise
Problem Drawings
$120INCLUDES
MOLD COST CREDIT
MOLD COST CREDIT
Provide
Mold Suggestions
$9.9INCLUDES
MOLD COST CREDIT
MOLD COST CREDIT
CASE STUDY
PROJECT OVERVIEW
Overall Score:
90
/100
Design Rating:
Top 15%
of designers
Industry Ranking:
58

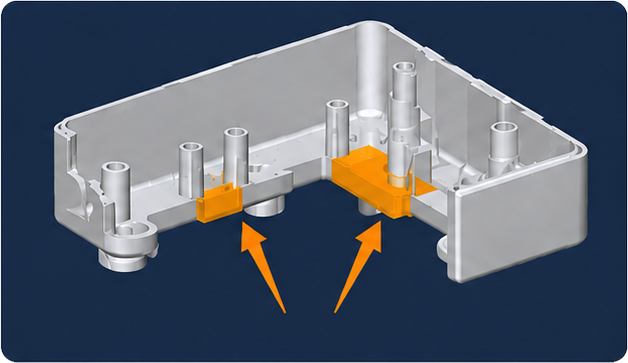

THIN WALL RISK
Uneven wall thickness may cause short shots or product deformation.
Issue
▶
Wall thickness varies significantly.
Solution
▶
Increase thin wall from 0.7mm to 1.0mm to ensure stable filling.

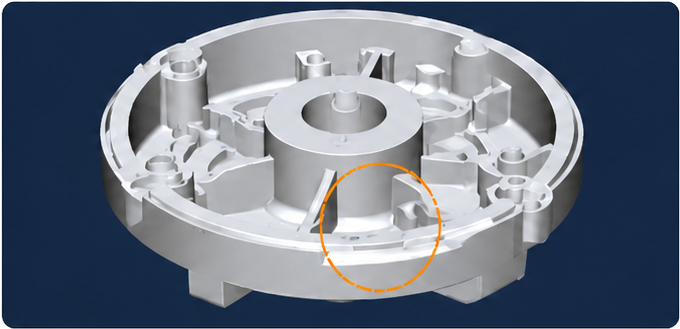

GATE POSITION OPTIMIZATION
Improper gate location may cause flow imbalance, visible weld lines and cosmetic defects.
Issue
▶
Melt flow imbalance near the rib area, causing weld lines.
Solution
▶
Move gate to the thicker section to achieve balanced flow and better appearance.

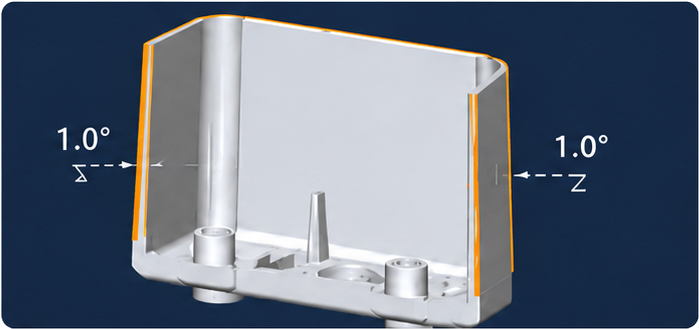

DRAFT ANGLE INSUFFICIENT
Insufficient draft angle may cause sticking during ejection and damage to the part.
Issue
▶
Draft angle is too low, increasing ejection resistance and risk of scratches.
Solution
▶
Increase draft angle to ≥ 1.5° for smooth ejection and better surface finish.
