Weld Lines in Injection Molding
Introduction
Weld lines are one of the most common flow-related defects in injection molded plastic parts. They form when two or more molten plastic flow fronts separate inside the mold cavity and then meet again before the part has fully solidified.
Depending on the material, geometry, mold design, and process conditions, a weld line may appear only as a faint cosmetic mark or become a structurally weak region of the finished component.
For engineers, the objective is therefore not simply to eliminate every visible line. The more important goal is to understand where weld lines will form, whether they affect product performance, and how their location and strength can be controlled before production begins.
This guide explains why weld lines occur, what risks they create, and how part design, gate strategy, tooling, material selection, and molding parameters can be optimized to reduce them.
What Is a Weld Line in Injection Molding?
During injection molding, molten polymer enters the cavity through one or more gates and flows around the part geometry.

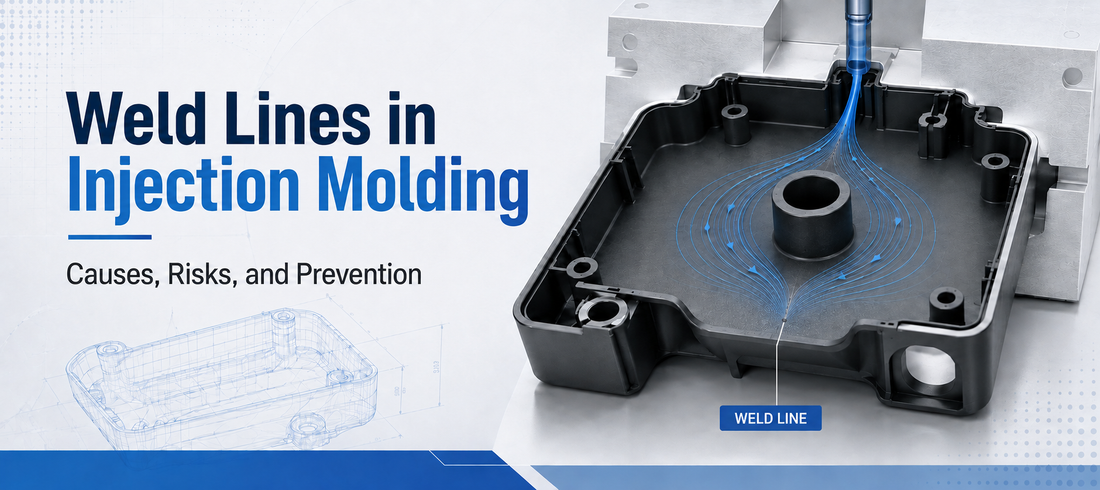

When the flow encounters an obstacle such as a hole, core pin, boss, or insert, the material may divide into separate flow fronts. These streams travel around the obstruction and eventually meet again.
A weld line forms at this meeting point.
Multiple gates can create the same effect because each gate introduces a separate flow front. As those fronts meet, a visible or structural line may develop.
Weld lines are therefore closely related to the overall filling pattern of the cavity. Gate position, wall thickness, geometry, material flow characteristics, and mold temperature all influence where they occur. AccuMolds' existing gate-design guidance similarly treats weld-line position as part of the overall flow and gate strategy.
Why Do Weld Lines Form?
Several conditions can contribute to weld-line formation.
Flow Around Holes and Obstacles
Features such as:
- Holes
- Core pins
- Bosses
- Inserts
- Slots
- Internal openings
can divide a single melt front into two or more streams.
When those streams reconnect downstream, a weld line may form.
This is particularly important around screw bosses, connector openings, mounting features, and structural holes where the resulting line may also experience mechanical loading.
Multiple Gates
Multi-gate designs can reduce flow length and improve filling for large or complex parts, but they also create multiple flow fronts.
Where those fronts meet, weld lines are likely to develop.
The engineering challenge is therefore not necessarily to avoid multiple gates, but to locate the gates so that the resulting meeting points occur in acceptable areas.
Complex Part Geometry
Ribs, bosses, windows, abrupt wall transitions, deep features, and internal structures can redirect polymer flow.
As part complexity increases, predicting the filling pattern becomes increasingly important. This is one reason DFM review for complex molded components should include gate location, material flow, weld lines, cooling, and other interacting factors before tooling is finalized.
Low Melt or Mold Temperature
If the polymer cools excessively before two flow fronts meet, the surfaces may not fuse together effectively.
The resulting weld line can become more visible and, depending on the application and material, mechanically weaker.
Insufficient Flow Velocity or Pressure
Poor filling conditions may allow the melt front to cool before reaching the meeting point.
Injection speed, pressure, material viscosity, wall thickness, and flow length must therefore be considered together rather than adjusted independently.
Poor Venting
As separate flow fronts converge, trapped air must escape from the cavity.
If the area is poorly vented, compressed gas can interfere with material fusion and may contribute to visible defects, incomplete filling, or burn-related problems.
Why Weld Lines Matter
Not every weld line creates the same level of risk.
Its importance depends primarily on where it forms and what the surrounding area is required to do.
Reduced Mechanical Strength
A weld line can create a weaker region if the two flow fronts do not fuse sufficiently.
This becomes particularly important near:
- Snap-fits
- Screw bosses
- Clips
- Mounting points
- Load-bearing ribs
- Press-fit features
- Impact-sensitive areas
If a weld line crosses a highly stressed region, failure may occur at a lower load than expected.
Cosmetic Defects
Weld lines may appear as fine lines, changes in gloss, or subtle surface marks.
For internal industrial components, this may be acceptable.
For consumer electronics, medical device housings, automotive interiors, and other appearance-sensitive products, however, a visible weld line may not meet cosmetic requirements.
Sealing Risk
Weld lines deserve particular attention around fluid or air sealing features.
Potentially sensitive areas include:
- Valve components
- Fluid connectors
- Gasket interfaces
- Pressure-containing parts
- Medical fluid-handling components
The design should avoid placing an unnecessary flow meeting point in a critical sealing path whenever possible.
Dimensional and Surface Quality Concerns
Poor flow-front merging may also contribute to local surface or dimensional inconsistency.
For precision components, weld-line location should therefore be evaluated together with tolerances, functional interfaces, and inspection requirements.
How Part Design Influences Weld Lines
Weld-line prevention begins before the molding machine is set up.
Part geometry strongly controls how molten plastic moves through the cavity.
Maintain Smooth Material Flow
Abrupt geometry changes can disturb the flow front.
Designers should aim for gradual transitions and reasonably consistent wall thickness wherever functional requirements allow.
Thin sections can cool rapidly and increase filling difficulty, particularly when combined with long flow paths. AccuMolds' thin-wall design guidance similarly emphasizes evaluating wall thickness, flow length, gate design, material behavior, and process conditions as an interconnected system.
Review Holes, Bosses, and Internal Features
Because holes and internal features divide the polymer flow, their positions should be reviewed in relation to the expected melt direction.
For example, a hole positioned directly downstream from the gate may split the flow and create a weld line on the opposite side.
If that area contains a high-load feature, engineers may need to adjust:
- Gate position
- Feature orientation
- Local geometry
- Flow path
- Tooling strategy
Avoid Critical Functional Areas
When a weld line cannot reasonably be eliminated, the preferred approach is often to move it.
Whenever possible, avoid locating weld lines across:
- High-stress regions
- Snap-fit roots
- Precision interfaces
- Sealing surfaces
- Highly visible cosmetic surfaces
This turns weld-line management into a design-control problem rather than a purely process-control problem.
Gate Location Is One of the Most Important Controls
Gate location determines the direction and sequence in which the cavity fills.
Changing the gate location can therefore move the weld line to a completely different area of the part.
A good gate strategy should consider:
- Flow length
- Wall thickness
- Part geometry
- Number of gates
- Cosmetic surfaces
- Functional features
- Vent locations
- Expected weld-line positions
For complex parts, selecting a gate simply because it is convenient for mold construction may create avoidable quality problems elsewhere.
Gate placement should instead be reviewed as part of the complete DFM and flow strategy. AccuMolds' current gate-location guidance specifically recommends considering weld-line positions during flow simulation and avoiding critical structural and sealing areas where possible.
Use Mold Flow Analysis Before Tooling
For complex components, mold flow simulation can help engineers predict how the polymer will move through the cavity before steel is cut.
Simulation can be used to evaluate:
- Filling pattern
- Flow-front progression
- Weld-line location
- Air traps
- Pressure requirements
- Gate options
- Filling balance
AccuMolds also identifies weld-line prediction as one of the manufacturing risks that can be evaluated through mold-flow simulation before tooling.
Simulation does not replace engineering judgment, but it allows different design and gate strategies to be compared before expensive mold modifications become necessary.
Improve Venting at Flow Meeting Points
Air must escape when two flow fronts converge.
If the expected weld-line region is located near the end of fill, adequate venting becomes especially important.
Depending on the mold design, venting may be incorporated through:
- Parting-line vents
- Inserts
- Ejector features
- Dedicated venting structures
The appropriate solution depends on the cavity geometry and tooling configuration.
Good venting can support more complete filling and more reliable merging of the polymer flow fronts.
Review Material Selection
Different thermoplastics behave differently when flow fronts meet.
Factors such as:
- Melt viscosity
- Processing temperature
- Fiber reinforcement
- Additives
- Flow characteristics
- Temperature sensitivity
can influence weld-line appearance and performance.
Fiber-filled materials require particular attention because fiber orientation near the meeting point can affect local mechanical behavior.
Material selection should therefore consider not only the nominal material properties but also how the resin behaves inside the actual molded geometry.
Optimize the Injection Molding Process
After the design and mold strategy have been established, process optimization can further improve weld-line quality.
Engineers may evaluate parameters such as:
- Melt temperature
- Mold temperature
- Injection speed
- Injection pressure
- Holding conditions
- Fill profile
The correct settings depend on the specific polymer, geometry, tooling, and equipment.
Changing a single parameter without considering the overall process may solve one defect while creating another. Process optimization should therefore focus on establishing a stable molding window rather than relying on one isolated adjustment.
A Practical Weld-Line Prevention Workflow
A structured engineering approach can reduce weld-line risk before mass production.
1. Review Part Geometry
Identify holes, bosses, ribs, inserts, and other features that can divide the melt flow.
2. Evaluate Gate Strategy
Determine how gate number and location influence the filling pattern.
3. Predict Flow Meeting Points
Use engineering review and, where appropriate, mold flow analysis to identify likely weld-line locations.
4. Check Critical Areas
Determine whether the predicted lines cross structural, sealing, dimensional, or cosmetic features.
5. Optimize Tooling and Venting
Provide appropriate gate, runner, and venting solutions.
6. Validate the Process
Use mold trials to establish stable filling and processing conditions.
7. Inspect Production Parts
Confirm that weld-line appearance and performance meet the actual product requirements.
This approach helps shift defect control from troubleshooting after tooling to engineering prevention before production.
