Warpage in Injection Molding

Introduction

Warpage is one of the most common dimensional defects in injection molding. It occurs when a molded part bends, twists, bows, or otherwise changes shape as a result of uneven shrinkage or internal stress.

A part may appear acceptable immediately after molding but distort during cooling, after ejection, or later as residual stresses relax.

Warpage can affect:

• Flatness
• Dimensional accuracy
• Assembly fit
• Sealing surfaces
• Alignment
• Cosmetic appearance
• Functional performance

Unlike a localized surface defect, warpage often reflects the combined effects of part geometry, material behavior, mold cooling, gate strategy, packing, and process conditions.

Effective troubleshooting therefore requires engineers to understand not only where the distortion occurs, but also why different regions of the part are shrinking differently.

What Is Warpage in Injection Molding?

Warpage is the deformation of a molded component away from its intended geometry after or during solidification.

All thermoplastics shrink as they cool. Shrinkage itself is expected and can be accounted for during mold design.

Warpage develops when that shrinkage is not uniform throughout the part.

For example, if one side of a component cools and contracts faster than the opposite side, the difference in shrinkage can cause the part to curve.

Common forms of warpage include:

• Bowing of large flat surfaces
• Twisting of rectangular housings
• Curved edges
• Distorted corners
• Uneven flanges
• Out-of-flat sealing surfaces
• Misaligned bosses or mounting features

The visible distortion is often the result of stresses that developed earlier during filling, packing, cooling, or ejection.

What Causes Warpage in Injection Molding?

Warpage rarely has only one cause. Several factors may interact within the same molded component.

1. Uneven Cooling

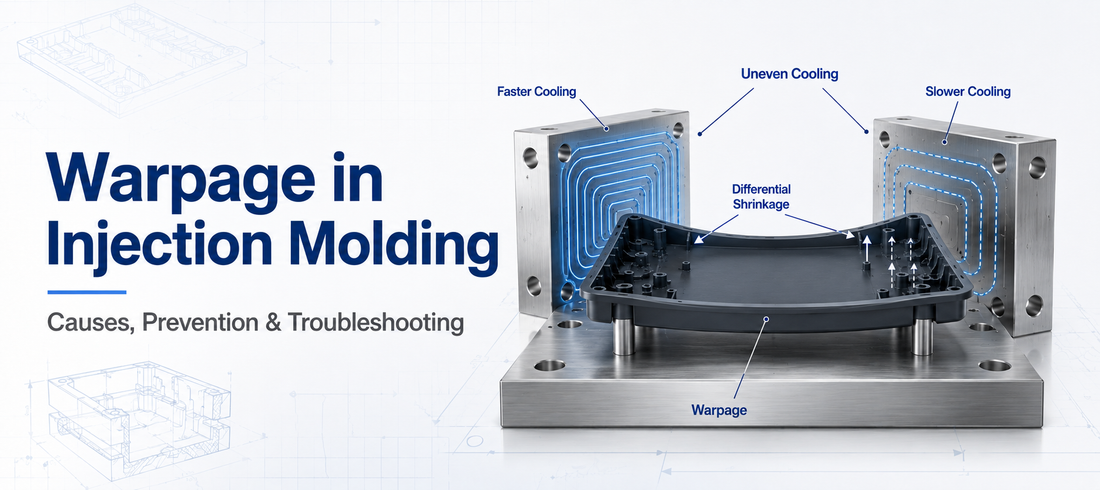

Uneven cooling is one of the most important contributors to warpage.

If different areas of a molded part cool at different rates, they may also shrink at different rates.

This can occur when:

• Cooling channels are unevenly positioned
• One mold surface is significantly hotter than another
• Thick sections retain heat longer
• Core and cavity temperatures differ
• Local geometry limits heat transfer

Large temperature differences across a part can create differential shrinkage and residual stress.

2. Uneven Wall Thickness

Thick sections generally cool more slowly than thin sections.

When a design contains abrupt changes in wall thickness, the thicker region may continue shrinking after surrounding areas have already solidified.

This difference can pull the part out of shape.

Maintaining more consistent wall thickness is therefore important not only for filling and cycle time, but also for dimensional stability.

3. Poor Rib and Boss Design

Ribs and bosses add strength and functionality, but they also create local changes in material volume.

Excessively thick ribs, solid bosses, or heavy intersections can produce localized shrinkage and uneven cooling.

Where possible, structural features should reinforce the part through geometry rather than large concentrations of material.

4. Gate Location and Filling Pattern

Gate location affects how molten plastic enters the cavity, how pressure is distributed, and how polymer molecules or reinforcing fibers become oriented.

An unbalanced filling pattern can create different shrinkage behavior across the component.

Gate strategy becomes especially important for:

• Large flat parts
• Long flow paths
• Fiber-reinforced materials
• Multi-gate molds
• Parts with asymmetric geometry

The objective is to achieve controlled filling and balanced packing across critical areas.

5. Inadequate or Uneven Packing

After the cavity fills, holding pressure compensates for material shrinkage as the plastic begins to solidify.

If some regions receive sufficient packing while others do not, shrinkage may become uneven.

Potential contributors include:

• Insufficient holding pressure
• Insufficient holding time
• Premature gate freeze
• Long pressure-transfer distances
• Poor gate placement

Increasing packing pressure alone is not always the correct solution. The entire pressure path from the gate through the cavity should be considered.

6. Material Shrinkage and Fiber Orientation

Different polymers have different shrinkage characteristics.

Semi-crystalline materials may behave differently from amorphous materials, while glass-fiber-reinforced resins can exhibit directional shrinkage because fibers tend to orient with the melt flow.

As a result, shrinkage in the flow direction may differ from shrinkage across the flow direction.

For reinforced materials, part geometry and gate location can strongly influence the final dimensional behavior.

7. Premature or Uneven Ejection

A part may also deform if it is ejected before it has developed sufficient rigidity.

Potential problems include:

• Insufficient cooling time
• Uneven ejector-force distribution
• Difficult release from deep features
• Insufficient draft
• Local sticking
• Large unsupported surfaces

In these cases, the distortion may be created mechanically during ejection rather than entirely through thermal shrinkage.

How Part Design Influences Warpage

Part geometry has a major influence on dimensional stability.

Large Flat Surfaces

Large unsupported panels can be sensitive to bowing because relatively small differences in shrinkage across the surface can produce visible deformation.

Proper ribs can improve stiffness, but overly thick ribs may create new shrinkage problems.

Abrupt Wall-Thickness Changes

A thick-to-thin transition creates different cooling conditions within neighboring areas.

Gradual transitions and more uniform sections generally promote more predictable shrinkage.

Asymmetric Geometry

A highly asymmetric component may naturally cool and shrink differently from one side to the other.

Where practical, designers should consider whether structural features, wall distribution, and ribs can create a more balanced geometry.

Ribs and Bosses

Ribs and bosses should be designed as part of the overall wall system rather than treated as isolated features.

Cored bosses, controlled rib thickness, appropriate fillets, and balanced structural reinforcement can reduce unnecessary material buildup and improve dimensional stability.

How Mold Design Influences Warpage

Even a well-designed part can warp if the mold does not remove heat uniformly.

Cooling Channel Layout

Cooling channels should provide effective temperature control across the cavity.

Areas around deep cores, bosses, or thick sections may require additional cooling consideration because these regions can retain heat.

Core-to-Cavity Temperature Balance

If the two sides of a molded wall experience significantly different mold temperatures, one surface may contract differently from the other.

This can cause the part to bend toward one side.

Gate and Runner Design

The gate and runner system should support balanced filling and effective pressure transfer.

For multi-cavity molds, cavity-to-cavity balance is also important for consistent dimensional results.

How to Troubleshoot Warpage

A systematic troubleshooting process should begin by identifying when and where the deformation develops.

Warpage Appears Immediately After Ejection

Check:

• Cooling time
• Mold temperature balance
• Part temperature at ejection
• Ejector layout
• Draft and release conditions

If the part is still too flexible when removed, additional cooling or improved ejection support may be required.

One Side of the Part Bows Consistently

Check:

• Core versus cavity temperature
• Cooling-channel balance
• Local wall thickness
• Asymmetric geometry
• Packing distribution

Consistent directional bowing often indicates an imbalance between opposite sides of the component.

Warpage Occurs Near Thick Features

Check:

• Wall transitions
• Rib thickness
• Boss design
• Heavy intersections
• Local cooling

Reducing material concentration may provide a more robust solution than compensating only through process settings.

Warpage Changes When Process Settings Change

Review:

• Holding pressure
• Holding time
• Melt temperature
• Mold temperature
• Cooling time
• Injection velocity

Parameter changes should be evaluated systematically because correcting one area may affect shrinkage somewhere else.

How to Prevent Warpage

Effective prevention usually requires design, tooling, material, and process decisions to work together.

Maintain More Uniform Wall Thickness

Avoid unnecessary thick sections and abrupt transitions.

Where additional stiffness is required, consider properly designed ribs rather than simply increasing the entire wall thickness.

Balance Structural Features

Distribute ribs, bosses, and reinforcement features so they do not create large localized differences in material volume or stiffness.

Design an Effective Cooling System

Cooling should be evaluated according to actual part geometry rather than simply placing channels uniformly throughout the mold.

Critical hot regions may require targeted cooling strategies.

Review Gate Location Early

Gate placement should support balanced filling, pressure transfer, and predictable material orientation.

For complex or fiber-reinforced parts, mold-flow analysis can help identify potential shrinkage and warpage risks before tooling is finalized.

Optimize Packing and Cooling

Holding pressure, holding time, mold temperature, and cooling time should be established through controlled process development.

The goal is a repeatable molding window—not a single set of parameters that happens to produce one acceptable part.

Preventing Warpage Through DFM

Many warpage problems can be reduced before the mold is built.

During DFM and tooling review, engineers should evaluate:

• Wall-thickness consistency
• Large flat surfaces
• Rib and boss geometry
• Thick intersections
• Part symmetry
• Gate location
• Expected flow pattern
• Material shrinkage behavior
• Fiber orientation
• Cooling-channel layout
• Ejection strategy
• Critical dimensional requirements

A useful engineering relationship is:

Part Geometry → Filling & Packing → Cooling → Shrinkage → Final Part Shape

Warpage should therefore be considered a system-level problem rather than simply a molding-machine adjustment.

Addressing dimensional stability during CAD, DFM, mold design, and process development can reduce tooling modifications, shorten troubleshooting cycles, and improve production consistency.
