Short Shots in Injection Molding

Introduction

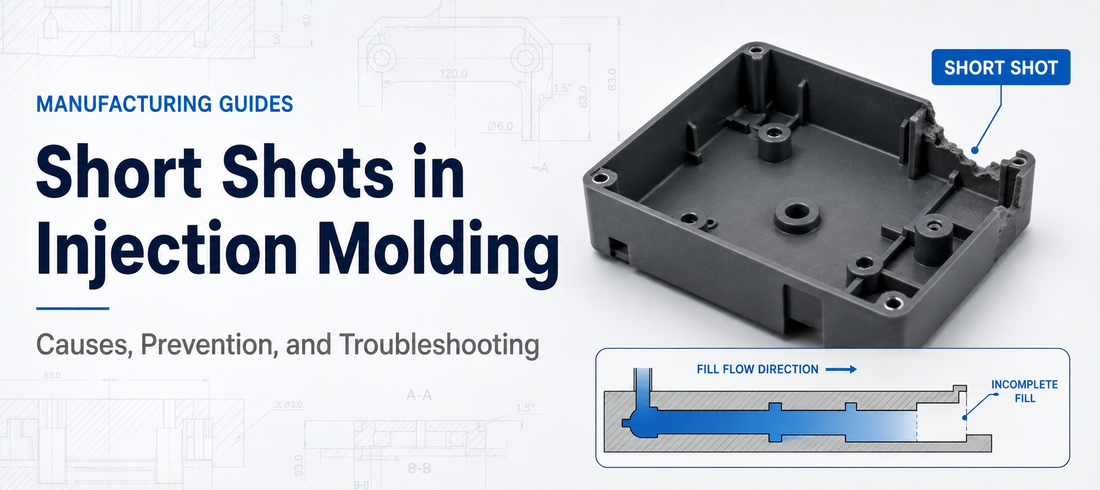

A short shot occurs when molten plastic fails to completely fill an injection mold cavity, leaving part of the molded component incomplete.

The defect may appear as a missing edge, partially formed rib, incomplete corner, unfilled thin section, or missing feature near the end of the material flow path.

Unlike some cosmetic molding defects, a short shot usually makes the part unusable because the intended geometry has not been fully formed.

For manufacturing engineers, solving a short shot requires more than simply increasing injection pressure. The root cause may involve part geometry, material flow, gate design, venting, temperature, injection speed, or machine capability.

This guide explains why short shots occur, where they commonly appear, and how design, tooling, and process optimization can help prevent incomplete filling.

What Is a Short Shot in Injection Molding?

A short shot is an injection molding defect in which the polymer melt solidifies before completely filling the cavity.

During molding, molten plastic enters the cavity through the gate and flows through the available part geometry.

As the material travels, it loses heat to the mold surfaces.

If the melt cannot maintain sufficient temperature, pressure, and flow until the cavity is completely filled, the flow front stops prematurely.

The resulting molded part contains one or more incomplete features.

Short shots often appear at:

• The end of the flow path
• Thin wall sections
• Narrow ribs
• Small features
• Areas far from the gate
• Complex flow transitions
• Locations behind trapped air
• Multiple-cavity molds with unbalanced filling

The location of the incomplete area often provides valuable information about the underlying cause.

What Causes Short Shots in Injection Molding?

Short shots generally occur when the material cannot reach the entire cavity before it freezes or when trapped air prevents the melt from advancing.

Several factors may contribute.

1. Insufficient Injection Pressure

The molding machine must generate enough pressure to move molten plastic through the runner, gate, and cavity.

If injection pressure is too low, the material may stop before reaching the end of the flow path.

However, increasing pressure should not automatically be the first corrective action.

If excessive pressure is required to fill the part, the design may contain restricted flow sections, an undersized gate, inadequate venting, or another fundamental limitation.

2. Injection Speed Is Too Low

Injection speed influences how quickly the melt reaches the farthest regions of the cavity.

When filling is too slow, the polymer may lose excessive heat to the mold before the cavity is complete.

This is particularly important for:

• Thin-wall components
• Long flow paths
• Small precision parts
• Materials with narrow processing windows

Increasing injection speed may improve filling, but it should remain within an appropriate process window to avoid creating other defects.

3. Melt Temperature Is Too Low

Polymer viscosity generally increases as melt temperature decreases.

If the material enters the mold at an insufficient temperature, it may resist flow and freeze prematurely.

Low melt temperature can therefore contribute to incomplete filling, particularly in narrow sections or long flow paths.

Temperature adjustments should follow the processing requirements of the specific resin rather than relying on a universal setting.

4. Mold Temperature Is Too Low

The mold itself removes heat from the polymer.

If mold temperature is too low for the application, the material may solidify too quickly near the cavity walls.

This reduces the available flow channel and can prevent the melt from reaching distant features.

Thin-wall parts are particularly sensitive because they have less cross-sectional area available for material flow.

5. Restricted Gate or Runner

The gate controls how molten plastic enters the cavity.

A gate that is too small can restrict flow, create excessive pressure loss, or freeze before filling is complete.

Runner dimensions can create similar problems.

Gate and runner design should therefore support the flow requirements of the material, part size, wall thickness, and expected filling pattern.

6. Poor Venting

As molten plastic fills the cavity, the air already inside the mold must escape.

If air becomes trapped, it can resist the advancing melt front and prevent material from filling the final region.

Poor venting can contribute to:

• Short shots
• Burn marks
• Incomplete details
• Unstable filling
• Surface defects

Vent locations are especially important near the end of fill and in areas where flow fronts may trap air.

7. Excessive Flow Length

The farther molten plastic must travel, the more pressure and heat it loses.

Long flow paths become more challenging when combined with:

• Thin walls
• High-viscosity materials
• Small gates
• Complex geometry
• Low mold temperatures

For this reason, flow length should always be evaluated in relation to wall thickness rather than as an isolated dimension.

How Part Design Contributes to Short Shots

Short shots are often treated as processing defects, but product geometry can strongly influence material flow.

Thin Wall Sections

Thin walls cool quickly and create greater resistance to flow.

If a thin section is located far from the gate, the melt may freeze before filling is complete.

Thin-wall design therefore requires careful coordination between:

• Wall thickness
• Material selection
• Flow length
• Gate location
• Injection speed
• Mold temperature

Simply increasing machine pressure cannot always compensate for an unfavorable flow path.

Abrupt Thickness Changes

Sudden transitions from thick sections into thin regions can disrupt the filling pattern.

The melt may preferentially flow through lower-resistance areas while thinner regions hesitate or freeze.

Gradual transitions and more uniform wall thickness can improve filling consistency.

Narrow Ribs and Small Features

Thin ribs, narrow channels, and small structural details can be difficult to fill, particularly if they are positioned near the end of the flow path.

These features should be evaluated during DFM to determine whether the selected material and molding process can reliably reproduce them.

Sharp Corners

Sharp internal corners can interfere with smooth flow and create localized resistance.

Appropriate radii can help improve material movement through the cavity while also reducing stress concentration in the finished part.

Why Gate Location Matters

Gate location determines where the material begins filling the part and strongly influences the overall flow pattern.

A poorly positioned gate may create:

• Excessive flow length
• Difficult-to-fill thin sections
• Hesitation
• Air traps
• Unbalanced filling
• High pressure requirements
• Short shots

For example, placing a gate at one end of a large thin housing may force the material to travel across the entire component before reaching the opposite edge.

Moving the gate closer to the geometric center, using multiple gates, or modifying the flow strategy may improve filling.

The correct solution depends on the part geometry, material, appearance requirements, and tooling concept.

Gate design should therefore be reviewed before mold construction whenever possible.

Why Venting Is Critical

Air inside the cavity needs a controlled escape path as plastic enters.

When the cavity is poorly vented, trapped air can behave like a compressed barrier against the incoming polymer.

This commonly occurs:

• At the end of fill
• Between converging flow fronts
• Around deep ribs
• Inside pockets
• Near closed-end features

Proper venting can help the cavity fill more completely without requiring unnecessary increases in pressure.

The venting strategy should be coordinated with the expected filling pattern rather than added randomly around the mold.

Process Adjustments for Reducing Short Shots

When the geometry and mold design are fundamentally sound, process optimization may resolve incomplete filling.

Potential adjustments include:

Increase Injection Pressure

Additional pressure may help move the melt through restrictive or distant cavity regions.

However, excessive pressure can increase flash, stress, or tooling load.

Optimize Injection Speed

Faster filling can help the melt reach thin or distant features before solidification.

Injection speed profiles can also be adjusted through different stages of the filling process.

Adjust Melt Temperature

Increasing melt temperature within the resin's recommended processing range may reduce viscosity and improve flow.

Adjust Mold Temperature

A warmer mold can slow surface freezing and allow the melt to travel farther before solidification.

Verify Shot Size and Material Feed

The machine must deliver enough material for the complete part, runner system, and required cushion.

An insufficient shot volume can produce incomplete filling even if the flow conditions are otherwise acceptable.

Design Problem, Mold Problem, or Process Problem?

Efficient troubleshooting requires identifying which part of the system is creating the limitation.

If the short shot consistently occurs in the same thin feature or farthest location from the gate, investigate:

• Wall thickness
• Flow length
• Gate location
• Rib geometry
• Material selection

If the incomplete region appears near a trapped-air location, review venting.

If multiple parts or cavities begin filling inconsistently after previously stable production, investigate:

• Material conditions
• Process settings
• Machine performance
• Gate condition
• Vent contamination
• Tooling condition

Short shots should be treated as a system-level problem rather than automatically assigned to one molding parameter.

Short Shots in Multi-Cavity Molds

Multi-cavity molds introduce an additional challenge: balanced filling.

If runner lengths, gates, cavity resistance, or thermal conditions are not balanced, one cavity may fill before another.

The result can be:

• Complete parts in some cavities
• Short shots in others
• Different packing conditions
• Dimensional variation between cavities

Runner and gate balance should therefore be considered during mold design, particularly for higher-cavity production tooling.

A stable multi-cavity process requires each cavity to receive material under reasonably consistent conditions.

Why Short Shots Should Be Addressed Before Tooling

Many short-shot risks can be identified before mold manufacturing begins.

During DFM review, engineers can evaluate:

• Wall thickness
• Flow length
• Gate location
• Gate size
• Thin ribs
• Sharp transitions
• End-of-fill locations
• Venting strategy
• Material flow behavior
• Multi-cavity balance

Changing a CAD model or gate strategy before tooling is generally easier than correcting a mold after steel has been machined.

Early design review can also reduce reliance on aggressive molding parameters later.

The goal is to create a design that fills within a stable process window, rather than one that only produces acceptable parts under extreme settings.

A Practical Short Shot Troubleshooting Checklist

When incomplete filling appears, review the issue systematically:

• Where does the short shot occur?
• Is it always at the end of the flow path?
• Is the affected wall unusually thin?
• Are narrow ribs or small features involved?
• Is the gate appropriately sized?
• Is the gate location creating excessive flow length?
• Is venting available near the end of fill?
• Could trapped air be blocking the melt?
• Is injection pressure sufficient?
• Is injection speed appropriate?
• Are melt and mold temperatures within the correct processing range?
• Is sufficient material being delivered?
• Are all cavities filling evenly?
• Has the defect changed over time?

These questions help identify the root cause before unnecessary adjustments are made.

Preventing Short Shots Through DFM

The most reliable way to reduce short-shot risk is to consider material flow during the design stage.

A good DFM review should evaluate the part as an integrated molding system:

Material → Gate → Flow Path → Wall Thickness → Venting → Process

Uniform walls, appropriate gate placement, reasonable flow lengths, adequate venting, suitable material selection, and realistic feature geometry all contribute to consistent cavity filling.

For complex or thin-wall components, early flow analysis and molding trials can further reduce production risk.
