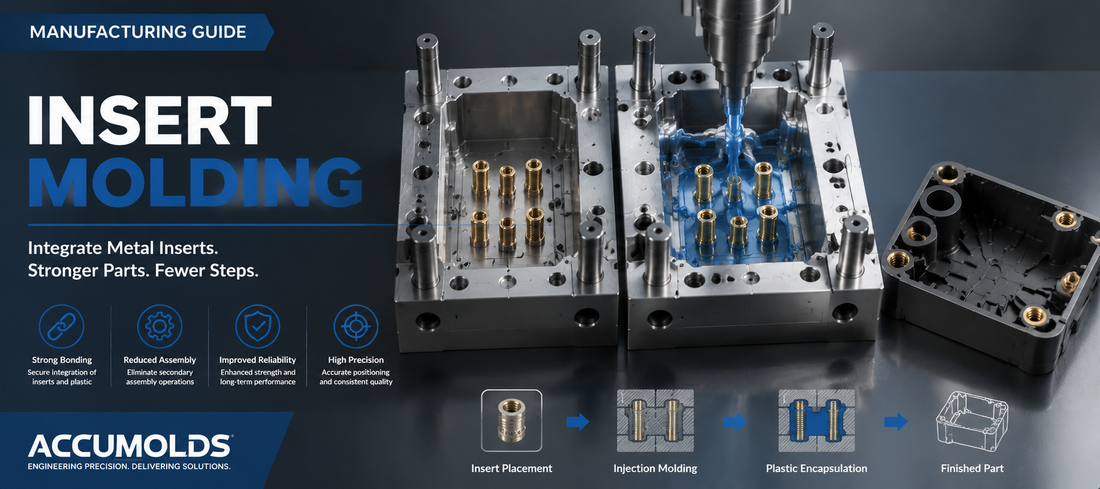

Insert Molding Guide

Introduction

Insert molding is an advanced injection molding process that combines plastic materials with pre-formed components such as metal inserts, electronic parts, or other substrates.

By embedding inserts directly into molded plastic parts, manufacturers can create stronger, more compact, and highly integrated components while reducing assembly steps.

For engineers designing products that require mechanical reinforcement, electrical functionality, or improved durability, insert molding provides an efficient manufacturing solution.

This guide explains how insert molding works, its advantages, common applications, and key design considerations.

What Is Insert Molding?

Insert molding is an injection molding process where a pre-manufactured insert is placed into a mold before plastic injection.

During molding:

1. The insert is positioned inside the mold cavity
2. Molten plastic flows around the insert
3. The plastic cools and bonds with the insert
4. A finished composite part is produced

The final component combines the properties of both materials.

Common insert materials include:

• Metal components
• Threaded inserts
• Electrical terminals
• Bushings
• Fasteners
• Ceramic components

How Does Insert Molding Work?

Step 1: Insert Preparation

Before molding begins, inserts are manufactured and prepared.

Important considerations:

• Insert dimensions
• Surface condition
• Material compatibility
• Position accuracy

For metal inserts, surface treatments such as knurling or texturing may improve mechanical bonding.

Step 2: Insert Placement

The insert is accurately positioned inside the injection mold.

Placement methods include:

• Manual loading
• Automated robotic placement
• Mold locating features

Precise positioning is critical for:

• Assembly accuracy
• Part consistency
• Production efficiency

Step 3: Plastic Injection

Molten plastic is injected around the insert.

The plastic fills the cavity and surrounds the insert, creating a strong mechanical connection after cooling.

Key process parameters include:

• Injection pressure
• Melt temperature
• Mold temperature
• Cooling time

Step 4: Cooling and Part Removal

After cooling:

• The plastic solidifies
• The insert becomes permanently integrated
• The finished part is ejected from the mold

The result is a single component combining multiple materials.

Advantages of Insert Molding

1. Reduced Assembly Operations

Traditional manufacturing may require:

1. Plastic molding
2. Insert installation
3. Secondary assembly

Insert molding combines these steps into one process.

Benefits:

• Lower labor costs
• Reduced assembly time
• Fewer production steps
• Improved consistency

2. Improved Part Strength

Insert molding creates a strong connection between plastic and insert components.

Applications benefit from:

• Increased mechanical strength
• Better load resistance
• Improved durability

This is especially useful for parts exposed to repeated stress.

3. Compact and Lightweight Design

By integrating multiple components into one molded part, engineers can reduce:

• Component count
• Overall size
• Assembly complexity

This makes insert molding suitable for compact products and space-limited designs.

4. Improved Product Reliability

Compared with secondary assembly methods, insert molding reduces potential failure points.

Advantages include:

• Better alignment accuracy
• Reduced loose components
• Consistent production quality

Insert Molding vs Overmolding

Although both processes combine multiple materials, they serve different purposes.

Feature	Insert Molding	Overmolding
Main Purpose	Embed rigid inserts into plastic	Add one material layer over another
Common Inserts	Metal, terminals, fasteners	Rubber, soft plastics
Typical Applications	Connectors, threaded parts	Grips, seals, ergonomic products
Main Benefit	Strength and integration	Function and appearance

Insert molding is typically selected when a product requires structural reinforcement or integrated components.

Common Applications of Insert Molding

1. Electronics and Electrical Components

Insert molding is widely used for:

• Electrical connectors
• Sensor housings
• Terminal blocks
• Switch components

Benefits:

• Precise component positioning
• Electrical insulation
• Improved durability

2. Automotive Components

Automotive applications often require strong and reliable parts.

Examples:

• Threaded mounting components
• Sensor brackets
• Electrical connectors
• Interior components

3. Medical Devices

Medical components often require precision and reliability.

Applications include:

• Surgical instruments
• Diagnostic equipment parts
• Drug delivery components

Insert molding helps achieve:

• Compact designs
• Consistent quality
• Reliable performance

4. Industrial Equipment

Industrial applications include:

• Mechanical housings
• Bushings
• Wear-resistant components
• Precision assemblies

Insert Molding Design Considerations

1. Select the Right Insert Material

Material compatibility is critical.

Consider:

• Thermal expansion differences
• Chemical compatibility
• Mechanical requirements
• Corrosion resistance

Common combinations:

• Stainless steel + engineering plastics
• Brass + thermoplastics
• Aluminum + reinforced polymers

2. Design Proper Insert Geometry

Insert geometry affects bonding strength.

Recommended practices:

• Use knurling or grooves for better retention
• Avoid sharp edges that create stress concentration
• Provide enough plastic coverage around inserts
• Consider insert positioning during mold design

3. Consider Thermal Expansion

Plastic and metal materials expand differently with temperature changes.

Engineers should evaluate:

• Operating temperature range
• Material expansion differences
• Long-term stress effects

Proper design helps prevent:

• Cracking
• Stress whitening
• Insert loosening

4. Optimize Mold Design

Insert molding requires specialized tooling considerations.

Important factors include:

• Accurate insert positioning
• Proper cavity design
• Venting
• Cooling layout
• Ejection strategy

A well-designed mold improves production stability and part quality.

Common Insert Molding Challenges

1. Insert Movement During Injection

Problem:

High injection pressure may shift inserts.

Solutions:

• Improve locating features
• Optimize mold design
• Use proper insert retention methods

2. Plastic Cracking Around Inserts

Problem:

Stress concentration may cause cracks.

Solutions:

• Increase plastic thickness around inserts
• Add proper radii
• Optimize material selection

3. Poor Bonding Performance

Problem:

Insufficient mechanical or chemical bonding.

Solutions:

• Improve insert surface preparation
• Select compatible materials
• Optimize molding parameters

Insert Molding Design Checklist

Before production, review:

• Is the insert material compatible with the plastic?
• Is the insert securely positioned in the mold?
• Is there enough plastic coverage around the insert?
• Are thermal expansion differences considered?
• Has mold flow analysis been completed?
• Has DFM feedback been reviewed?
• Are production inspection requirements defined?

How AccuMolds Supports Insert Molding Projects

At AccuMolds, we provide engineering support for complex injection molding applications, including insert molding solutions.

Our capabilities include:

• Insert molding design review
• Precision mold development
• DFM analysis
• Mold flow evaluation
• Prototype validation
• High-volume production support

Our engineering team works with customers from initial design concepts through final production to ensure reliable and manufacturable solutions.
