Injection Molding Process
Introduction
Understanding how plastic parts are designed, molded, and manufactured through the injection molding process
Injection molding is one of the most widely used manufacturing processes for producing high-volume plastic components with consistent quality, tight tolerances, and complex geometries.
From medical devices and automotive components to electronic housings and industrial equipment, injection molding enables manufacturers to produce millions of identical parts efficiently while maintaining dimensional accuracy and repeatability.
However, successful injection molding requires much more than simply injecting molten plastic into a mold. The final part quality depends on multiple factors, including material selection, mold design, gate location, cooling system design, processing parameters, and quality control.
This guide explains the complete injection molding process, from initial design considerations to final production, and highlights the key engineering factors that influence manufacturing success.
What Is Injection Molding?
Injection molding is a manufacturing process that uses heat and pressure to transform plastic materials into finished components.
During the process, plastic pellets are heated until they become molten. The molten plastic is then injected into a precision-engineered mold cavity, where it cools and solidifies into the final part shape.

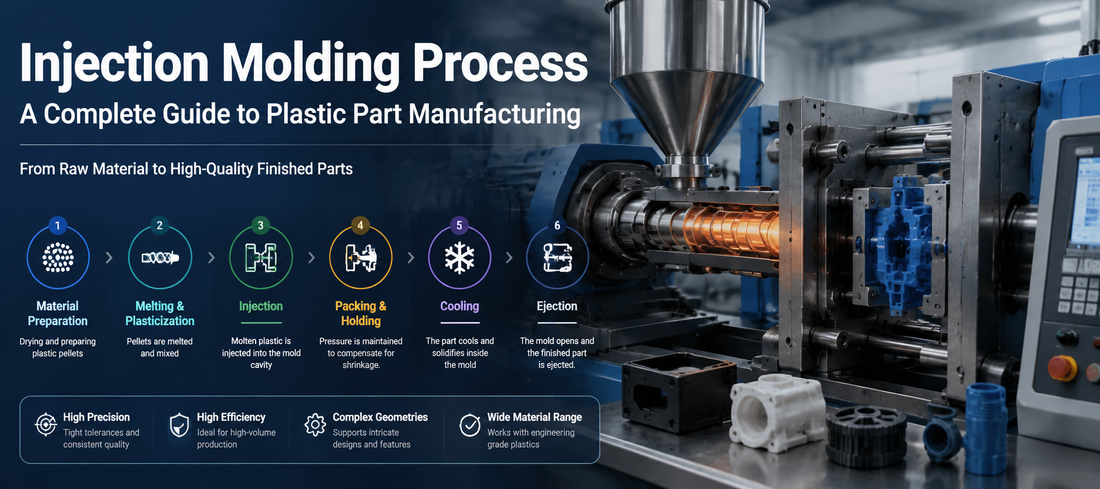

The basic injection molding process consists of six major stages:
- Material preparation
- Plastic melting
- Injection
- Packing and holding
- Cooling
- Ejection
Each stage affects the appearance, strength, dimensional accuracy, and overall performance of the final molded part.
The Six Steps of the Injection Molding Process
1. Material Preparation
The injection molding process begins with plastic resin preparation.
Plastic materials typically arrive in pellet form and may include additives such as:
- Glass fiber reinforcement
- UV stabilizers
- Flame retardants
- Colorants
- Lubricants
Common injection molding materials include:
- ABS
- Polycarbonate (PC)
- Nylon (PA)
- Polypropylene (PP)
- POM (Acetal)
- PEEK
- PPS
- TPU
Before molding, materials must be properly dried and conditioned.
Some engineering plastics absorb moisture from the environment. If moisture is not removed, it can cause:
- Surface defects
- Reduced mechanical strength
- Internal voids
- Poor dimensional stability
For example, materials such as nylon and polycarbonate typically require controlled drying before processing.
2. Plastic Melting and Plasticization
Inside the injection molding machine, plastic pellets enter the heated barrel.
A rotating screw performs two functions:
- Melting the plastic through heat and mechanical shear
- Moving the molten material toward the injection unit
The temperature must be carefully controlled.
If the temperature is too low:
- Poor material flow
- Short shots
- Weak weld lines
If the temperature is too high:
- Material degradation
- Burn marks
- Discoloration
- Reduced mechanical properties
Experienced process engineers optimize:
- Barrel temperature
- Screw speed
- Back pressure
- Residence time
to achieve stable molding conditions.
3. Injection Stage
During injection, molten plastic is pushed into the mold cavity under high pressure.
The injection phase determines how effectively the cavity is filled.
Important parameters include:
Injection Pressure
Controls how strongly material enters the cavity.
Insufficient pressure may cause:
- Short shots
- Incomplete filling
- Poor surface replication
Excessive pressure may create:
- Flash
- Mold stress
- Part deformation
Injection Speed
Injection speed affects:
- Flow behavior
- Weld line formation
- Surface appearance
- Filling balance
Complex parts with thin walls or multiple features often require carefully optimized injection profiles.
4. Packing and Holding Stage
After the cavity is filled, additional pressure is applied to compensate for plastic shrinkage during cooling.
This stage is critical for:
- Dimensional accuracy
- Part strength
- Surface quality
Incorrect holding pressure or time can cause:
Sink Marks
Caused by insufficient packing pressure, especially around thick sections.
Flash
Caused by excessive pressure forcing material into mold parting surfaces.
Dimensional Variation
Caused by inconsistent shrinkage.
Proper packing optimization requires balancing:
- Holding pressure
- Holding time
- Gate freeze time
5. Cooling Stage
Cooling is usually the longest stage of the injection molding cycle.
During cooling:
- Molten plastic solidifies
- Part dimensions stabilize
- Mechanical properties develop
Mold cooling system design has a major impact on production efficiency.
Poor cooling design can lead to:
- Warpage
- Uneven shrinkage
- Longer cycle times
- Reduced productivity
Advanced mold designs often use:
- Optimized cooling channels
- Conformal cooling technology
- Thermal simulation analysis
to improve cooling performance.
6. Part Ejection
Once the plastic part has cooled sufficiently, the mold opens and ejector systems remove the finished component.
Common ejection methods include:
- Ejector pins
- Ejector sleeves
- Air ejection
- Stripper plates
Incorrect ejector placement can create:
- Visible marks
- Deformation
- Stress whitening
- Part damage
Ejection design should be considered early during mold design, not after the mold is completed.
Key Factors That Affect Injection Molding Quality
Successful injection molding depends on the interaction between:
1. Part Design
A mold cannot compensate for poor product design.
Important design considerations include:
- Uniform wall thickness
- Proper draft angles
- Rib design
- Boss design
- Rounded corners
- Appropriate tolerances
Designing parts for manufacturability (DFM) helps prevent costly tooling modifications.
2. Mold Design
The injection mold determines how the plastic flows and solidifies.
Critical mold components include:
Mold Cavity
Defines the final part geometry.
Runner System
Controls material distribution.
Gate Design
Controls where plastic enters the cavity.
Cooling System
Controls temperature management.
Ejection System
Controls part removal.
A well-designed mold improves:
- Part quality
- Cycle time
- Tool life
- Production reliability
3. Material Selection
Material choice affects:
- Strength
- Temperature resistance
- Chemical resistance
- Wear performance
- Cost
For example:
| Â Application | Common Materials |
| Consumer electronics | ABS, PC |
| Automotive components | PP, PC/ABS, Nylon |
| Medical devices | PC, PEEK, ABS |
|
High-temperature applications |
PEEK, PPS, PEI |
| Mechanical components | POM, Nylon |
Choosing the wrong material can lead to premature failure or increased manufacturing costs.
Common Injection Molding Defects and Causes
Even well-designed parts can experience defects if process parameters are not optimized.
1. Short Shot
Cause:
- Insufficient material flow
- Low injection pressure
- Poor venting
Solution:
- Optimize injection parameters
- Improve mold venting
- Adjust gate design
2. Flash
Cause:
- Excessive injection pressure
- Poor mold alignment
- Insufficient clamping force
Solution:
- Optimize pressure settings
- Improve mold precision
3. Sink Marks
Cause:
- Thick wall sections
- Insufficient cooling
- Poor packing
Solution:
- Improve part design
- Adjust holding parameters
4. Warpage
Cause:
- Uneven cooling
- Material shrinkage differences
- Incorrect processing conditions
Solution:
- Optimize cooling design
- Improve mold balance
Injection Molding Process Optimization
Manufacturers improve injection molding performance by optimizing several areas:
Mold Flow Analysis
Simulation software helps predict:
- Plastic flow behavior
- Filling problems
- Weld line locations
- Cooling performance
- Potential defects
Early simulation reduces expensive mold modifications.
Process Validation
Before full production, manufacturers typically perform validation processes including:
- Mold trials
- Dimensional inspection
- Material verification
- Functional testing
- Production capability studies
A validated process ensures repeatable quality.
Automation and Monitoring
Modern injection molding operations increasingly use:
- Automated part removal
- Vision inspection
- Real-time process monitoring
- Data collection systems
These technologies improve:
- Production efficiency
- Traceability
- Quality consistency
Prototype vs Production Injection Molding
Injection molding is commonly divided into two stages:
Prototype Injection Molding
Used for:
- Design verification
- Functional testing
- Market evaluation
Characteristics:
- Lower tooling investment
- Faster development
- Limited production volume
Production Injection Molding
Used for:
- High-volume manufacturing
- Long-term production
Requires:
- Durable molds
- Process optimization
- Quality control systems
Choosing the right manufacturing approach depends on:
- Production volume
- Product requirements
- Budget
- Timeline
How AccuMolds Supports Injection Molding Projects
Successful injection molding requires collaboration between product designers, mold engineers, and manufacturing specialists.
At AccuMolds, we support customers throughout the entire injection molding process, including:
- DFM analysis
- Mold design
- Precision mold manufacturing
- Mold testing
- Injection molding optimization
- Production support
Our engineering team works closely with customers to identify potential manufacturing challenges before tooling begins, helping reduce development risks and improve production efficiency.
Conclusion
Injection molding is a highly engineered manufacturing process that combines material science, mechanical design, mold engineering, and process optimization.
From the initial product concept to high-volume production, every decision influences the final result.
By understanding the injection molding process and applying Design for Manufacturability principles early, engineers can reduce development risks, improve product quality, and achieve more efficient production.
For companies developing complex plastic components, partnering with an experienced injection molding supplier can make the difference between a successful product launch and costly redesigns.
FAQ
How long does the injection molding process take?
The molding cycle time depends on part size, material, mold design, and cooling requirements. Simple parts may require only a few seconds, while larger or more complex components may require longer cycles.
What materials can be used in injection molding?
Injection molding supports a wide range of thermoplastics, including ABS, PC, Nylon, POM, PP, PEEK, PPS, and TPU.
Why is mold design important in injection molding?
The mold controls material flow, cooling behavior, and part accuracy. Poor mold design can result in defects, longer cycle times, and increased production costs.
What is the most important factor in injection molding quality?
Quality depends on the combination of part design, mold design, material selection, and process control. No single factor determines success.
