Gate Blush in Injection Molding

Introduction

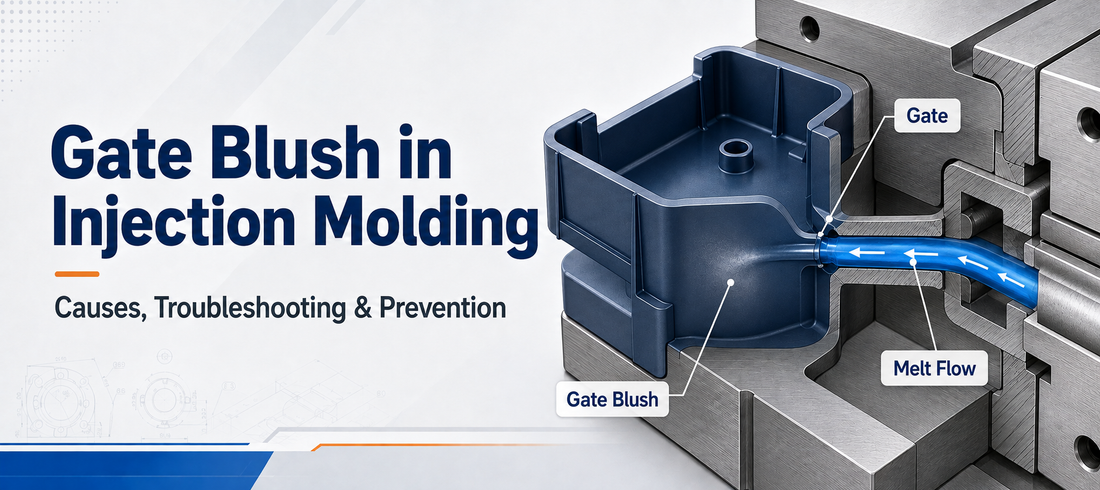

Gate blush is a common cosmetic defect in injection molding that appears near the gate where molten plastic enters the cavity. It may look like a cloudy halo, dull patch, white discoloration, streak, or localized surface change surrounding the gate area.

Although gate blush is often primarily cosmetic, it can indicate that the melt is experiencing excessive shear, sudden acceleration, poor flow transition, or unfavorable thermal conditions as it enters the cavity.

For parts with visible Class-A surfaces, consumer-facing housings, medical components, or other appearance-critical applications, even a small gate blush can result in rejected parts.

Understanding where the defect appears and how it relates to gate geometry and filling behavior is the first step toward solving it efficiently.

What Is Gate Blush?

Gate blush is a localized surface appearance defect that typically develops immediately around or downstream of the injection molding gate.

Depending on the resin, mold finish, and processing conditions, the affected area may appear:

• Cloudy or hazy
• Whitish
• Dull compared with the surrounding surface
• Slightly streaked
• Rough or uneven in gloss
• Similar to a small flow mark near the gate

The key diagnostic feature is location.

If the defect consistently begins at or very close to the gate, the gate and the initial filling conditions should be investigated first.

Gate blush should not automatically be treated as a material problem. In many cases, it develops from the interaction between gate design, melt velocity, shear, temperature, and cavity geometry.

Why Does Gate Blush Occur?

When molten resin passes through a restricted gate, its velocity can increase significantly.

If the gate is too small, injection speed is too high, or the melt enters the cavity abruptly, the material may experience high shear stress near the gate.

The outer layer of the melt can cool or orient differently from the material behind it, creating a visible change in surface appearance.

Gate blush therefore commonly develops when the transition from the runner or gate into the cavity is too aggressive.

Several factors may contribute at the same time, which is why changing one process parameter without understanding the filling behavior may not permanently solve the defect.

Common Causes of Gate Blush

1. Excessive Injection Speed Near the Gate

High injection velocity can force the melt through the gate too rapidly.

This increases shear and can create a strong surface disturbance immediately after the material enters the cavity.

Reducing the initial injection speed may help, especially when a multi-stage filling profile is available.

Instead of slowing the entire fill cycle, engineers can use a lower velocity during the first stage and increase speed after the melt has moved beyond the gate region.

This approach can reduce gate-area shear while maintaining efficient cavity filling.

2. Gate Size Is Too Small

A small gate creates a strong restriction in the flow path.

As molten plastic passes through the reduced cross-section, velocity and shear can rise significantly.

A gate that is undersized for the material, part size, or required flow rate may contribute to:

• Gate blush
• Excessive pressure
• High shear heating
• Premature gate freeze
• Difficult packing
• Surface flow defects

Increasing gate dimensions can sometimes provide a smoother transition into the cavity.

However, gate size should not be changed in isolation. Gate vestige, cycle time, packing behavior, appearance requirements, and automatic degating requirements must also be considered.

3. Poor Gate Location

Even a correctly sized gate can create problems if it directs the melt into an unfavorable area.

For example, a gate positioned so that melt enters directly into a large open cavity may allow the material to accelerate without sufficient support from the cavity wall.

A gate that directs flow toward a nearby wall can sometimes produce a more controlled fountain-flow pattern.

Gate location should therefore be evaluated together with:

• Flow direction
• Wall thickness
• Distance to end of fill
• Cosmetic surfaces
• Weld-line location
• Air traps
• Pressure requirements

Gate location is both a tooling decision and a part-quality decision.

4. Abrupt Flow Transition

A sudden change from a narrow gate into a much larger cavity can disturb the melt front.

Instead of transitioning smoothly into stable cavity filling, the material may expand or accelerate irregularly after leaving the gate.

This unstable region can create visible surface differences near the gate.

Gate geometry, entry angle, cavity wall geometry, and local wall thickness should therefore be reviewed as one flow system rather than as separate features.

5. Melt Temperature Is Too Low

If the melt temperature is too low, the resin may have higher viscosity and require more pressure to pass through the gate.

The resulting resistance can intensify shear effects and make surface defects more visible.

Increasing melt temperature within the material supplier's recommended processing window may improve flow behavior.

However, excessive melt temperature can create other problems, including material degradation, discoloration, longer cooling times, or dimensional instability.

The objective is not simply to make the melt hotter, but to establish an appropriate processing window for the specific material and geometry.

6. Mold Temperature Is Too Low

A cold mold surface can cause the outer layer of the melt to freeze rapidly as it enters the cavity.

This can make gate-area flow patterns more visible and may contribute to differences in gloss or surface appearance.

Increasing mold temperature can sometimes allow the polymer surface to reproduce the cavity finish more uniformly.

As with melt temperature, the correct setting depends on the resin, part geometry, surface requirements, and production cycle.

7. Material Sensitivity

Some engineering plastics are more sensitive to shear, temperature, moisture, and processing history than others.

Material characteristics such as viscosity and shear sensitivity affect how easily gate blush develops.

Moisture-sensitive materials must also be dried correctly because moisture-related defects can sometimes appear as streaks or surface changes near the gate.

Before changing the mold, confirm that:

• The correct material grade is being used
• Drying requirements are being followed
• Regrind levels are controlled
• Melt temperature is within the recommended range
• Residence time is appropriate

This helps prevent a material-related surface defect from being mistaken for a gate-design problem.

Gate Blush vs. Other Injection Molding Defects

Accurate identification is important because several defects can appear near the gate.

Jetting often produces a snake-like, wavy, or folded flow pattern caused by an uncontrolled stream of melt entering the cavity.

Flow marks may appear as visible lines or waves associated with variations in melt-front progression.

Silver streaks or splay often appear as elongated silver or white streaks and may be associated with moisture, volatiles, or material degradation.

Burn marks are usually darker brown or black and are more commonly associated with trapped gas, excessive temperature, or degradation.

Gate blush is typically more localized around the gate and appears as a cloudy, dull, whitish, or gloss-different region.

The defect location and pattern should therefore be confirmed before process adjustments begin.

How to Troubleshoot Gate Blush

A structured troubleshooting sequence reduces unnecessary parameter changes.

Step 1: Confirm the Defect Location

Determine whether the discoloration or surface change consistently originates at the gate.

If the defect appears randomly across the part, investigate material condition or other processing issues instead.

Step 2: Review the Filling Pattern

Observe how the melt enters the cavity.

Look for evidence of:

• Excessive initial velocity
• Jetting
• Sudden expansion
• Unstable flow
• Direct high-speed flow into an open cavity

If available, mold-flow analysis can help visualize velocity, pressure, shear rate, and flow-front progression.

Step 3: Optimize the Injection Profile

Reduce initial injection speed near the gate.

A multi-stage injection profile can often provide better control:

Lower initial speed → stable gate entry → higher speed for the remaining fill

This allows engineers to address the gate region without unnecessarily slowing the entire molding cycle.

Step 4: Review Gate Geometry

If process adjustments provide only limited improvement, evaluate the gate itself.

Review:

• Gate thickness
• Gate width
• Gate type
• Entry angle
• Gate-to-wall relationship
• Local wall thickness

The objective is to create a smoother transition from the runner into the cavity.

Step 5: Review Temperature Conditions

Verify melt and mold temperatures against the recommended processing window.

Adjustments should be made systematically rather than changing multiple parameters simultaneously.

Step 6: Review Part and Mold Design

Persistent gate blush may require a broader DFM review.

Gate location, cavity geometry, wall thickness, surface requirements, and filling balance should be evaluated together.

Moving the gate, changing the gate type, or modifying local geometry may be appropriate when process optimization alone cannot establish stable filling.

How to Prevent Gate Blush

Preventing gate blush is usually more effective than correcting it after tooling is complete.

During part and mold development, engineering teams should consider:

• Selecting an appropriate gate type
• Providing sufficient gate dimensions
• Avoiding unnecessarily restrictive gate geometry
• Directing melt into a controlled flow path
• Maintaining reasonable wall-thickness transitions
• Keeping gates away from critical cosmetic areas when possible
• Evaluating shear and pressure during DFM
• Using mold-flow analysis for challenging geometries
• Establishing a validated injection-speed profile
• Maintaining consistent material drying and processing conditions

For appearance-critical components, gate placement should be reviewed early because the gate influences more than filling.

It can also affect surface quality, weld lines, air traps, packing behavior, orientation, dimensional stability, and the location of the final gate vestige.

Gate Design Should Be Evaluated as Part of the Complete Filling System

Gate blush is a useful example of why injection molding defects should not be analyzed through one parameter alone.

A processor may reduce injection speed and temporarily improve the defect, but an undersized or poorly positioned gate may still limit the process window.

Likewise, enlarging the gate may not solve the problem if the melt is entering the cavity in an unstable direction.

Reliable production depends on the interaction between:

Part Geometry → Material → Gate Design → Mold Design → Process Parameters

For new tooling, reviewing these relationships during DFM can reduce the risk of cosmetic defects before steel is cut.

For existing molds, defect location and filling behavior can help determine whether the best solution is a process adjustment, gate modification, tooling change, or combination of improvements.
