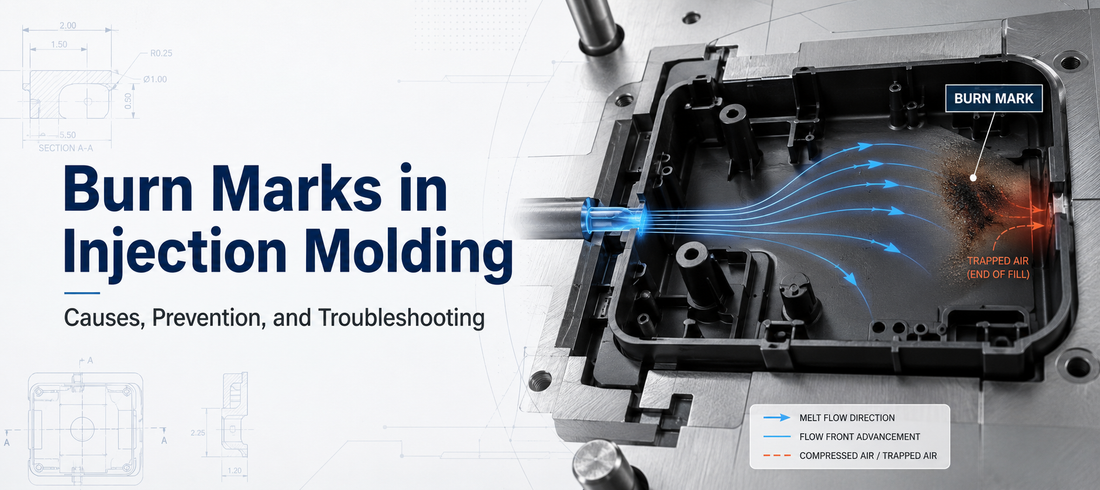

Burn Marks in Injection Molding

Introdution

Burn marks are a common injection molding defect that typically appears as dark brown, black, or discolored areas on the surface of a molded plastic part.

They are often found near the end of the flow path, around ribs and bosses, in deep pockets, or in areas where air becomes trapped during cavity filling. In some cases, burn marks result from compressed gas inside the mold. In others, excessive melt temperature, shear, or material degradation may be responsible.

For engineers, the key is to determine where the discoloration appears, when it occurs during filling, and whether the root cause comes from the part design, mold venting, material condition, or processing parameters.

This guide explains what causes burn marks in injection molding, how to identify the likely source, and how design, tooling, material preparation, and process optimization can reduce the risk.

What Are Burn Marks in Injection Molding?

Burn marks are localized areas of discoloration that appear on an injection molded part.

They may look like:

• Brown spots
• Black streaks
• Darkened edges
• Scorched areas
• Localized surface discoloration

The appearance alone does not always identify the root cause.

A dark mark near the end of fill, for example, may indicate trapped and compressed air. A dark streak near the gate or runner may instead suggest excessive shear, overheating, or degraded material.

Because several different mechanisms can produce similar visual defects, burn-mark troubleshooting should focus on the entire molding system rather than a single parameter.

Why Do Burn Marks Form?

Burn marks generally result from one or more of four conditions:

• Trapped air or gas
• Excessive shear
• Excessive melt temperature
• Material degradation

AccuMolds' existing injection molding guidance similarly identifies trapped air, excessive shear, high melt temperature, and degradation-related conditions as common contributors to burn marks.

1. Trapped Air and Gas Compression

One of the most common causes of burn marks is trapped air inside the mold cavity.

As molten plastic enters the cavity, the air already inside the mold must escape.

If that air is trapped in a pocket or end-of-fill region, the advancing melt compresses it rapidly. The compressed gas can heat significantly and may discolor or damage the polymer surface.

This is often associated with:

• End-of-fill locations
• Deep ribs
• Bosses
• Blind pockets
• Thin sections
• Areas where multiple flow fronts meet

Poor venting can therefore contribute not only to burn marks, but also to air traps, short shots, and incomplete filling. AccuMolds' thin-wall design guidance highlights these same vent-sensitive regions and recommends venting around flow ends, ribs, bosses, deep pockets, and flow-front meeting areas.

2. Excessive Injection Speed

High injection speed can improve filling, particularly in thin-wall or long-flow components, but excessive speed can also create problems.

When the melt enters the cavity too quickly:

• Air may not have enough time to escape
• Gas can become trapped and compressed
• Shear heating may increase
• Local polymer temperature may rise

Burn marks that repeatedly appear near the end of fill may therefore be related to a combination of poor venting and excessive end-of-fill velocity.

A common engineering approach is not necessarily to slow the entire filling stage, but to optimize the injection profile so that the cavity fills efficiently while reducing excessive velocity as the melt approaches trapped-air regions.

3. Excessive Melt Temperature

The polymer must be hot enough to flow properly, but excessive melt temperature can promote thermal degradation.

Potential causes include:

• Barrel temperature set too high
• Excessive back pressure
• Excessive screw speed
• Long residence time
• Heat-sensitive resin
• Material remaining in dead zones

AccuMolds' injection molding process guidance notes that excessively high processing temperature can contribute to burn marks, discoloration, material degradation, and reduced mechanical properties.

This is why melt temperature should be evaluated together with screw speed, back pressure, residence time, and the specific processing range recommended for the resin.

4. Excessive Shear

Shear generates heat as the polymer moves through the machine, runner, gate, and cavity.

Excessive shear may occur when molten plastic is forced through:

• Gates that are too small
• Restrictive runners
• Sharp transitions
• Narrow flow paths
• Very high injection speeds

This can raise local melt temperature and contribute to discoloration.

Burn marks caused primarily by shear may appear close to the gate, runner, or other high-velocity flow restrictions rather than only at the end of fill.

5. Material Degradation and Residence Time

Plastic that remains inside the barrel for too long can begin to degrade.

This may occur because of:

• Excessive residence time
• Incorrect barrel temperature
• Oversized machine barrel relative to shot size
• Extended production interruptions
• Material left in the barrel during downtime

Degraded polymer may produce dark particles, streaks, or burned material that becomes molded into the part.

If burn marks appear randomly rather than consistently in one cavity location, material degradation or contamination should be considered.

6. Poor Mold Venting

Venting is one of the most important mold-design controls for preventing gas-related burn marks.

Vents allow air and process gases to escape as the melt advances.

Common vent locations include:

• End-of-fill areas
• Parting lines
• Rib ends
• Boss regions
• Deep pockets
• Flow meeting points

Vent dimensions must be appropriate for the resin so that gas can escape without allowing plastic to flash through the vent.

When repeated burn marks occur in the same area, vent condition and vent placement should be inspected early in the troubleshooting process.

How Part Design Influences Burn Marks

Burn marks are often treated as a process problem, but part geometry can strongly influence where trapped air develops.

Deep Ribs and Pockets

Deep, narrow features can trap air as melt surrounds them.

Potential improvements may include:

• Reducing unnecessary depth
• Improving transition geometry
• Providing better venting access
• Reviewing fill direction

Bosses and Internal Features

Bosses can divide or redirect the melt front.

If air becomes trapped behind the boss or between converging flow fronts, a burn mark may develop near the downstream region.

Abrupt Wall Changes

Sudden wall-thickness changes can disturb flow progression and create local hesitation or gas-trapping conditions.

Maintaining smoother transitions can support more predictable filling.

Thin-Wall Sections

Thin sections require rapid filling and can increase sensitivity to air entrapment.

AccuMolds' current thin-wall guidance notes that gate strategy affects filling balance, air entrapment, pressure requirements, and cosmetic quality, making early flow and venting review especially important.

Gate Location and Burn Marks

Gate location determines how molten plastic enters and fills the cavity.

An inappropriate gate position can create:

• Long flow paths
• Unbalanced filling
• Air traps
• High local velocity
• Difficult-to-vent end-of-fill regions

AccuMolds' gate-location guidance specifically identifies air trapping as one of the molding risks affected by gate position and flow pattern.

For complex parts, changing the gate location may move an air trap to a region that is easier to vent or eliminate the trapped-air condition entirely.

Gate location should therefore be evaluated together with:

• Flow direction
• Vent position
• Wall thickness
• Feature placement
• Cosmetic surfaces
• Structural requirements

How to Troubleshoot Burn Marks

A systematic approach is more effective than changing multiple molding parameters at once.

Step 1: Identify the Defect Location

First determine whether the mark consistently appears:

• At the end of fill
• Near a rib or boss
• Near the gate
• Along the parting line
• Randomly across different parts

Location provides an important clue.

Step 2: Check Venting

If the mark appears repeatedly in an end-of-fill or trapped-air region, inspect:

• Vent location
• Vent depth
• Vent cleanliness
• Parting-line vent condition
• Possible blocked vents

Improving venting is often one of the first corrective actions for gas-compression burn marks.

Step 3: Review Injection Speed

If filling is too aggressive near the end of stroke, reduce end-of-fill velocity while maintaining sufficient speed during the earlier filling stage.

This can help reduce air compression without creating short shots or hesitation.

Step 4: Check Melt Temperature

Verify that:

• Barrel zones are within the appropriate material range
• Actual melt temperature is not excessive
• Screw speed is reasonable
• Back pressure is appropriate

Do not rely only on machine setpoints when diagnosing thermal degradation.

Step 5: Review Residence Time

Check whether material remains in the barrel too long.

This is particularly important when:

• The shot size is small relative to machine capacity
• Production is intermittent
• Long machine stops occur
• Heat-sensitive materials are used

Step 6: Evaluate Gate and Runner Restrictions

Inspect whether the melt is being forced through:

• An undersized gate
• A narrow runner
• A sharp transition
• A restrictive flow feature

Excessive restriction can increase shear heating.

Step 7: Confirm Material Condition

Check:

• Resin drying
• Contamination
• Regrind level
• Material mixing
• Degraded material from previous cycles

Material-related burn marks may be less location-specific than trapped-air defects.

Burn Marks vs Other Surface Defects

Burn marks can sometimes be confused with other molding defects.

Burn Marks vs Flow Marks

Flow marks often appear as waves, rings, or visible flow patterns.

Burn marks are more commonly associated with localized brown or black discoloration.

Burn Marks vs Black Specks

Black specks may originate from degraded material, contamination, or residue in the barrel or hot runner.

If defects appear randomly rather than at a consistent mold location, the material delivery system should be investigated.

Burn Marks vs Air Traps

An air trap is the underlying condition where gas becomes confined inside the cavity.

A burn mark can be one visible consequence of that trapped and compressed gas.

This distinction is important because eliminating the visible mark without correcting the air trap may leave the underlying filling problem unresolved.

Preventing Burn Marks Before Production

The most effective burn-mark strategy begins before tooling is finalized.

A practical prevention workflow includes:

1. Review Part Geometry
Identify deep ribs, bosses, pockets, thin sections, and likely end-of-fill regions.

2. Evaluate Gate Location
Create a balanced fill pattern and avoid unnecessary trapped-air zones.

3. Plan Mold Venting
Provide venting at end-of-fill areas and other likely gas traps.

4. Review Material Requirements
Confirm drying, processing temperature, residence-time sensitivity, and flow behavior.

5. Validate the Process Window
Optimize injection speed, melt temperature, back pressure, and screw conditions.

6. Inspect Mold Trials
Check defect location and determine whether corrective action belongs to design, tooling, material, or processing.

A structured DFM and mold-flow review can identify many air-trapping and gate-related risks before steel is cut. AccuMolds' design review process also evaluates gate location, material flow, air trapping, and related manufacturing risks during early engineering review.
