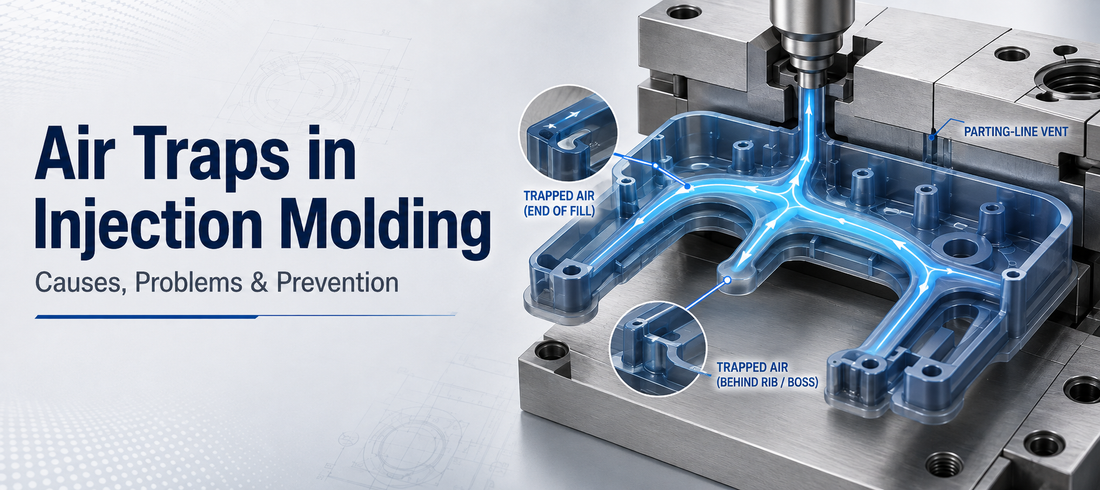

Air Traps in Injection Molding

Introduction

Air traps are a common injection molding issue that occurs when air or gas becomes enclosed inside the mold cavity and cannot escape as molten plastic advances.

Although trapped air may seem like a minor venting problem, it can contribute to several production defects, including burn marks, short shots, incomplete features, surface imperfections, and unstable filling.

For manufacturing engineers, the key is not simply to add more vents. Air entrapment is often influenced by the interaction between:

• Part geometry
• Gate location
• Melt flow pattern
• Mold venting
• Injection speed
• Material behavior

Understanding where air becomes trapped and why it cannot escape helps engineers identify the correct solution before making unnecessary process or tooling changes.

This guide explains how air traps form in injection molding, where they commonly occur, how they affect molded parts, and how design, tooling, and process optimization can reduce the risk.

What Is an Air Trap in Injection Molding?

An air trap occurs when air inside the mold cavity becomes surrounded or compressed by the advancing melt front with no effective escape path.

Before injection begins, the cavity naturally contains air.

As molten plastic enters through the gate, that air must leave the cavity through properly designed vents, parting lines, ejector clearances, or other controlled venting locations.

If the melt closes off an area before the air escapes, the gas becomes trapped.

Typical air-trap locations include:

• End-of-fill regions
• Deep ribs
• Blind pockets
• Around bosses
• Between converging flow fronts
• Sharp internal corners
• Thin sections
• Areas far from the gate

The exact location of the trapped air often provides an important clue to the underlying flow or venting problem.

Why Air Traps Cause Injection Molding Problems

Trapped air can interfere with cavity filling in several ways.

As the melt advances, the enclosed gas may become compressed. If the gas cannot escape quickly enough, pressure builds in the local area.

Depending on the severity and process conditions, this may result in:

Burn Marks

Rapid compression can significantly heat the trapped gas.

This may produce localized brown or dark discoloration, typically near the end of fill or another poorly vented location.

Short Shots

A trapped pocket of air can resist the advancing melt front.

If the material cannot displace the air, the final section of the cavity may remain partially unfilled.

Incomplete Details

Small ribs, corners, lettering, textures, or narrow features may fail to reproduce completely when air remains trapped inside them.

Surface Defects

Air entrapment can also contribute to localized surface irregularities or inconsistent appearance.

Unstable Filling

When venting is marginal, small variations in material condition, temperature, or injection speed may change how the cavity fills from cycle to cycle.

For this reason, recurring air traps should be treated as a mold-filling problem rather than only a cosmetic defect.

What Causes Air Traps in Injection Molding?

Air traps usually result from a combination of flow behavior and insufficient venting.

1. Inadequate Mold Venting

The most direct cause is insufficient venting at locations where air needs to escape.

Vents may be:

• Missing
• Too shallow or restricted
• Poorly positioned
• Contaminated
• Blocked by residue
• No longer effective because of mold wear or maintenance conditions

Vent placement is especially important at predictable end-of-fill regions.

2. Poor Gate Location

Gate location determines how the melt enters and progresses through the cavity.

An unfavorable gate position may cause melt fronts to surround a pocket, boss, rib, or internal feature before the air in that region has escaped.

Changing the gate strategy can sometimes change the entire air-trap pattern.

3. Converging Flow Fronts

When plastic flows around an obstruction or enters from multiple directions, separate melt fronts may eventually meet.

Air located between those fronts can become enclosed.

This commonly occurs:

• Behind bosses
• Around holes
• Around core features
• In multi-gate parts
• Near complex geometry

These regions should be evaluated during mold-flow and DFM review.

4. Deep Ribs and Blind Pockets

Deep, narrow features can create natural locations for air entrapment.

As the melt enters the feature, air may be pushed toward the deepest region with limited opportunity to escape.

The deeper and narrower the feature, the more important venting access becomes.

5. Abrupt Geometry Changes

Sudden changes in wall thickness or complex intersections can disturb the progression of the melt front.

One region may fill earlier than another, allowing the flow to surround an unfilled pocket and trap air inside.

More predictable geometry generally supports more predictable filling.

6. Excessive Injection Speed

Injection speed must be high enough to fill the part before premature freezing, but excessive speed can make venting more difficult.

If the melt approaches the end of fill too rapidly, the available air may not have enough time to escape through the venting system.

The correct solution is therefore not necessarily to slow the entire cycle. Injection velocity may need to be profiled according to the part geometry and fill stage.

How Part Design Influences Air Traps

Air-trap prevention should begin during part design rather than after the mold is complete.

Deep Ribs and Pockets

Deep features can become isolated as the melt fills around them.

During design review, engineers should consider whether depth, width, draft, and surrounding geometry allow predictable filling and practical vent placement.

Bosses and Internal Features

Bosses can divide or redirect the advancing melt.

As material flows around the boss, the two flow fronts may reconnect downstream, trapping air behind the feature.

The relationship between the boss, gate, ribs, wall thickness, and expected flow direction should therefore be reviewed as an integrated system.

Abrupt Wall Changes

Major thickness transitions can alter local flow velocity and resistance.

This may cause hesitation in one region while another region fills first, increasing the possibility of enclosed air.

Gradual transitions and more consistent wall thickness can help create a more controlled flow pattern.

Thin-Wall Sections

Thin-wall parts require careful coordination between flow length, injection speed, material viscosity, gate design, and venting.

End-of-fill regions in long thin sections can become particularly sensitive to trapped air because the process must fill quickly while still providing an effective escape path for cavity gases.

Why Gate Location and Vent Location Must Work Together

Gate design and venting should not be evaluated independently.

The gate establishes the direction of melt flow.

The flow pattern then determines where air will be pushed.

Vents should therefore be positioned based on the expected filling sequence rather than simply placed at convenient mold locations.

A basic engineering sequence is:

Gate Location → Flow Direction → End of Fill → Vent Location

For complex parts, mold-flow analysis can help predict:

• Fill progression
• Flow-front convergence
• End-of-fill locations
• Potential air traps
• Pressure distribution
• Areas requiring additional venting review

This is especially useful when a part contains multiple gates, deep features, complex ribs, internal bosses, or long flow paths.

How to Troubleshoot Air Traps

When an air-trap problem appears, troubleshooting should begin with defect location.

Air Trap at the End of Fill

Review:

• Vent location
• Vent condition
• End-of-fill injection speed
• Gate location
• Flow length

A repeatable defect at the same end-of-fill point often indicates a predictable flow or venting limitation.

Air Trap Behind a Boss or Feature

Review:

• Melt flow around the obstruction
• Gate direction
• Flow-front convergence
• Local vent access
• Boss and rib geometry

The feature may be redirecting the melt and creating a closed gas pocket.

Air Traps Appearing After Previously Stable Production

Review:

• Vent contamination
• Mold maintenance
• Material condition
• Process changes
• Injection velocity
• Tooling condition

If the mold previously ran successfully, the issue may be related to changing production conditions rather than the original design alone.

How to Prevent Air Traps

Effective prevention usually requires a combination of tooling, design, and process improvements.

Improve Mold Venting

Vents should be placed where air is expected to collect, particularly near end-of-fill regions and enclosed features.

Vent dimensions must also be appropriate for the material and tooling strategy so that gases can escape without allowing excessive flash.

Review Gate Strategy

Gate location should encourage a controlled and predictable filling pattern.

Moving or modifying a gate may help prevent the melt from surrounding an air pocket too early.

Optimize Injection Speed

Velocity profiling can help manage different stages of cavity filling.

For example, the mold may require fast filling through a long thin section but a controlled velocity near the final region to allow trapped air to vent effectively.

Improve Part Geometry

Where practical, engineers can reduce air-trap risk by reviewing:

• Deep pockets
• Rib geometry
• Boss placement
• Wall transitions
• Sharp internal corners
• Difficult end-of-fill features

The objective is not to eliminate complex geometry, but to make its filling behavior predictable and manufacturable.

Maintain Venting Surfaces

Even a correctly designed vent can become ineffective when residue or contamination accumulates during production.

Routine tooling inspection and cleaning are therefore important for maintaining consistent vent performance.

A Practical Air-Trap Troubleshooting Checklist

When trapped air is suspected, review the problem systematically:

• Where exactly does the defect appear?
• Is it located at the end of fill?
• Is a deep rib, boss, pocket, or internal feature nearby?
• Where is the gate relative to the defect?
• How do the melt fronts reach the affected area?
• Are multiple flow fronts converging there?
• Is adequate venting available?
• Are existing vents clean and functioning?
• Is injection speed excessive near the end of fill?
• Has the defect existed since the first molding trial?
• Did it appear only after extended production?
• Could a design change improve the expected filling sequence?

The defect location should guide the investigation before process parameters or mold components are changed.

Preventing Air Traps Through DFM

Many air-trap risks can be identified before mold manufacturing begins.

During DFM and tooling review, engineers can evaluate:

• Gate location
• Expected flow direction
• End-of-fill locations
• Boss and rib geometry
• Deep pockets
• Wall-thickness transitions
• Flow-front convergence
• Vent accessibility
• Material flow behavior
• Mold-flow analysis requirements

A useful way to evaluate the system is:

Part Geometry → Gate → Melt Flow → Air Displacement → Venting

The objective is to provide the molten plastic with a practical flow path while simultaneously providing cavity air with a reliable escape path.

Correcting an unfavorable filling pattern during CAD, DFM, or mold design is generally more efficient than troubleshooting recurring air entrapment after production tooling has been completed.
