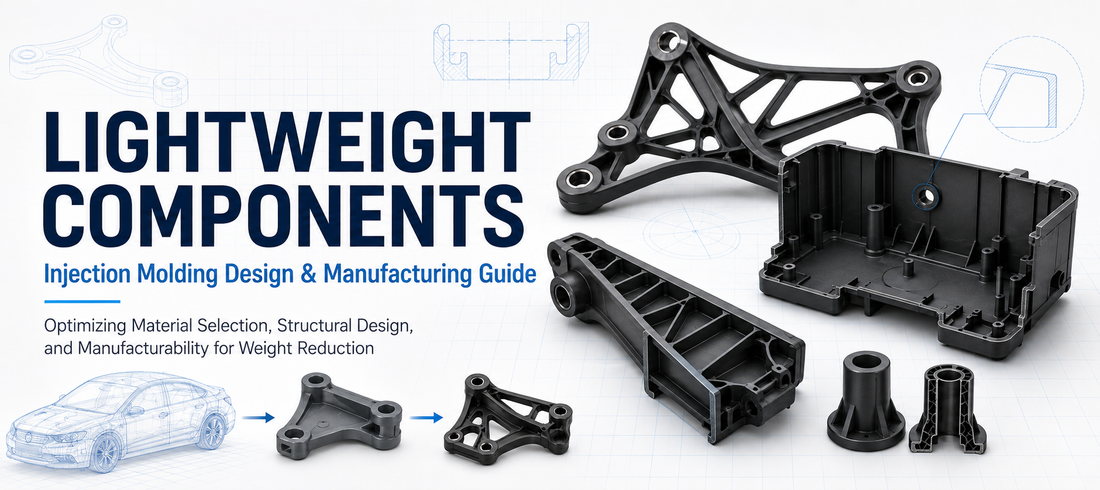

Lightweight Components

Introduction

Reducing component weight is an important engineering objective across automotive, transportation, electronics, industrial equipment, and other performance-driven products.

A lighter component can help reduce overall system mass, improve handling, simplify assembly, and lower the load placed on surrounding structures. In automotive applications, weight reduction can also support broader vehicle-efficiency goals, particularly when lightweight design is applied across many components rather than treated as a single-part exercise.

Injection molding gives engineers several ways to reduce weight while maintaining functional performance. Material substitution, wall-thickness optimization, ribs, hollow sections, part consolidation, and engineered thermoplastics can all contribute to a lighter design.

However, simply removing material is not enough.

A successful lightweight component must still meet requirements for strength, stiffness, dimensional stability, heat resistance, assembly, durability, and manufacturability.

Where Lightweight Injection Molded Components Are Used

Injection molded lightweight parts can be found throughout automotive and engineered products.

Typical applications include:

• Interior structural components
• Brackets and mounting supports
• Electrical housings
• Connector components
• Sensor housings
• Air-management components
• Protective covers
• Cable-routing components
• Control-system housings
• Equipment enclosures
• Handles and support structures
• Battery and electronic-system components

The opportunity for weight reduction depends on the function of each component.

A cosmetic cover may allow aggressive material reduction, while a load-bearing bracket or precision housing requires much greater attention to stiffness, creep, dimensional stability, and local stress.

For this reason, lightweight design should begin with the actual load case and service environment.

Lightweight Design Is More Than Using Less Plastic

One of the most common misconceptions is that a lightweight part is simply a thinner version of the original component.

Reducing every wall equally can create new problems, including:

• Excessive deflection
• Reduced impact resistance
• Weak mounting features
• Poor screw retention
• Distortion during assembly
• Warpage during molding
• Short shots in thin sections

A better approach is to identify where material contributes to performance and where it does not.

Engineers can then redistribute material to create a more efficient structure.

For example, a thick solid wall may be replaced with a thinner nominal wall supported by properly designed ribs. A solid boss may be cored while maintaining the geometry required for fastening. Several separately assembled components may also be integrated into one molded structure.

The goal is not minimum material everywhere. It is efficient material placement.

Material Selection for Lightweight Components

Material selection can significantly influence the weight and performance of a molded component.

Engineering thermoplastics offer different combinations of:

• Density
• Strength
• Stiffness
• Impact resistance
• Heat resistance
• Chemical resistance
• Creep behavior
• Moisture sensitivity
• Dimensional stability
• Processing characteristics

Depending on the application, materials such as ABS, PC, nylon, POM, PPS, or other engineering polymers may be evaluated.

Filled or reinforced polymers can also provide additional stiffness, allowing engineers to redesign a component rather than simply copying an existing metal geometry in plastic.

This distinction is important.

When replacing metal with plastic, a direct one-to-one geometry conversion is rarely the most efficient design strategy. Metals and polymers respond differently to load, temperature, stress concentration, and long-term service conditions.

The component should be redesigned around the behavior of the selected molding material.

Replacing Metal Components with Engineered Plastics

Metal-to-plastic conversion can provide substantial opportunities for weight reduction, but not every metal component is an appropriate candidate.

Potential applications may include:

• Covers
• Brackets
• Guides
• Housings
• Supports
• Mounting structures
• Non-critical structural components

Before converting a component, engineers should evaluate the requirements that caused metal to be selected originally.

Important questions include:

• What loads does the component carry?
• Is stiffness more important than ultimate strength?
• Is the part continuously loaded?
• What temperatures will it experience?
• Are chemicals, oils, or moisture present?
• Does it require threaded fastening?
• Are tight tolerances critical?
• Will the component experience vibration or impact?

Plastic designs can often use ribs, gussets, bosses, integrated clips, and curved sections to create stiffness without reproducing the thickness of the original metal part.

This is where DFM and structural design become closely connected.

Use Consistent Wall Thickness

Wall thickness has a direct relationship with both weight and injection molding performance.

Excessively thick walls increase:

• Material consumption
• Component weight
• Cooling time
• Sink-mark risk
• Internal shrinkage
• Cycle time

At the same time, making walls too thin can create filling problems or reduce mechanical performance.

A lightweight molded part should therefore use a practical and reasonably consistent nominal wall thickness.

Abrupt transitions from thin to thick areas should be minimized because they create different cooling and shrinkage behavior within the same component.

Where additional stiffness is required, local structural features are often more efficient than increasing the entire wall section.

Use Ribs to Add Stiffness Efficiently

Ribs are one of the most useful design features for lightweight injection molded components.

Properly designed ribs can increase stiffness while adding much less material than a solid thick wall.

They can be used to:

• Reinforce large surfaces
• Support mounting areas
• Reduce panel deflection
• Transfer loads
• Stabilize housing geometry
• Support bosses or internal features

However, overly thick ribs can create localized material buildup.

This can lead to:

• Sink marks
• Uneven cooling
• Local shrinkage
• Warpage
• Longer molding cycles

Rib thickness, spacing, orientation, and root transitions should therefore be considered together.

The best rib structure provides the required mechanical support without recreating the same mass that the lightweight design was intended to remove.

Optimize Bosses and Mounting Features

Bosses are frequently necessary for screws, alignment, inserts, or assembly.

But solid or excessively thick bosses can become some of the heaviest localized areas in a molded component.

A better design may use:

• Cored bosses
• Supporting ribs
• Gussets
• Controlled wall transitions
• Strategic connection to surrounding structures

The objective is to maintain the required mounting performance while limiting unnecessary material concentration.

Boss-to-wall and boss-to-rib intersections deserve particular attention because these areas can produce large local thickness variations.

During DFM review, these intersections should be evaluated for both structural function and molding behavior.

Integrate Multiple Functions into One Molded Part

Weight reduction does not always come from reducing the mass of one component.

It can also come from reducing the number of components in an assembly.

Injection molding allows engineers to integrate features such as:

• Clips
• Mounting tabs
• Cable guides
• Alignment features
• Snap-fits
• Locating pins
• Fastening bosses
• Protective walls
• Internal supports

A molded component that replaces several separately manufactured and assembled parts can potentially reduce:

• Total part count
• Fasteners
• Assembly operations
• Interface locations
• Packaging and handling complexity

Part consolidation can also reduce tolerance stack-up because fewer separate components need to align with one another.

However, integrated designs may result in more complex tooling, so the benefit should be evaluated together with mold construction and production requirements.

Consider Thin-Wall Design Carefully

Thin-wall molding can contribute to lighter components, but thin-wall design should not be treated as a universal solution.

As flow length increases and wall sections become thinner, filling becomes more demanding.

Engineers need to consider:

• Material flow behavior
• Gate location
• Flow length
• Venting
• Weld-line position
• Injection requirements
• Mold temperature
• Part geometry

Thin walls may be appropriate in some regions while thicker functional sections remain necessary elsewhere.

The transition between these areas should be gradual enough to support predictable flow and cooling.

This is another reason why lightweight design should be reviewed before tooling is finalized.

Maintain Strength Around Critical Load Paths

Material should be removed from low-value areas, not from the load paths that control performance.

For a bracket, enclosure, or mounting component, engineers should identify how force travels from one interface to another.

Critical areas may include:

• Screw locations
• Mounting holes
• Snap-fit roots
• Boss connections
• Corners
• Attachment points
• Rib intersections

Instead of making the entire component thick, material can be concentrated strategically around these functional regions.

Rounded transitions and appropriate fillets can also help distribute stress and reduce concentrated loading.

This creates a more structurally efficient component while supporting overall weight reduction.

Validate Lightweight Designs Before Production

A lightweight component may perform well in CAD but behave differently after molding.

Material shrinkage, fiber orientation, cooling variation, assembly force, and dimensional changes can all affect the final part.

Prototype and mold-trial validation can help engineers evaluate:

• Overall dimensions
• Flatness and warpage
• Assembly fit
• Mounting features
• Structural behavior
• Critical interfaces
• Mold filling
• Appearance

If a problem is identified, the design, tooling, material, or process can be reviewed before full production.

For lightweight components, validation is especially important because reducing material generally leaves less margin for poorly positioned thickness, inadequate support, or uncontrolled process variation.

Designing Lightweight Components for Production

A lightweight component should not only achieve its target mass. It should also be practical to manufacture repeatedly.

Before production tooling, engineers should review:

• Material requirements
• Nominal wall thickness
• Rib and boss geometry
• Draft
• Gate feasibility
• Ejection
• Critical tolerances
• Mold complexity
• Inspection requirements
• Assembly interfaces
• Expected production volume

Production volume can influence the appropriate tooling strategy, cooling approach, automation level, and inspection plan.

Early communication between product designers, tooling engineers, and molding teams helps balance part weight with manufacturing stability.

How AccuMolds Supports Lightweight Component Projects

AccuMolds supports custom injection molding projects from engineering review through tooling and production.

Relevant capabilities include:

• DFM analysis
• Product and mold design review
• Prototype development
• Mold design and manufacturing
• Mold flow evaluation
• Mold trials and process optimization
• Injection molding
• Insert molding
• Assembly support
• Dimensional inspection
• Production manufacturing

AccuMolds' current manufacturing workflow covers product design, mold evaluation, mold design, mold manufacturing, trial and validation, and mass production, allowing manufacturability considerations to be reviewed before a component moves into scalable production.

For lightweight components, this integrated approach helps engineers review material distribution, structural features, tooling feasibility, dimensional requirements, and production risks as part of the same development process.
