Reducing Manufacturing Risk
Introduction
Manufacturing risk rarely comes from a single major mistake. More often, it develops through a series of smaller decisions involving product design, material selection, tooling, process development, quality requirements, and production planning.
A part may perform well as a prototype but become difficult to mold consistently at production volumes. A tolerance that appears reasonable on a drawing may require unnecessary tooling complexity. A material selected for mechanical performance may introduce processing challenges that were not considered during early development.
For engineers and project teams, reducing manufacturing risk means identifying these issues before they become expensive tooling revisions, quality problems, production delays, or supply disruptions.
The most effective approach is to manage risk throughout the entire product development process—from initial design through production validation.
What Is Manufacturing Risk?
Manufacturing risk is the possibility that a product cannot be produced consistently, economically, or according to its required specifications.
For injection molded components, common manufacturing risks include:
- Parts that are difficult to fill or eject
- Sink marks, warpage, flash, short shots, or weld lines
- Dimensional instability
- Excessively tight or difficult-to-control tolerances
- Material-related processing problems
- Complex or unreliable mold mechanisms
- Long or unstable cycle times
- High scrap or rework rates
- Unexpected tooling modifications
- Inconsistent quality between production runs
- Delays during the transition from prototype to production
Some of these problems become visible during mold trials. Others may not appear until production volume increases.
That is why manufacturing risk should be addressed before tooling begins and continuously reviewed as the project moves toward production.
1. Start with Clear Product Requirements
Risk reduction begins before detailed manufacturing decisions are made.
Engineering teams should clearly define the requirements that actually matter to the finished product.
These may include:
- Mechanical loads
- Dimensional requirements
- Environmental conditions
- Chemical exposure
- Operating temperature
- Surface appearance
- Assembly requirements
- Expected service life
- Regulatory requirements
- Target production volume
The distinction between critical requirements and preferred requirements is especially important.
If every dimension is treated as critical or every surface receives a demanding cosmetic specification, unnecessary manufacturing complexity can be introduced.
Clear requirements allow engineers to focus manufacturing controls where they provide the greatest value.
2. Use DFM Before Tooling Begins
Design for Manufacturability (DFM) is one of the most effective methods for reducing manufacturing risk.
A CAD model can satisfy functional requirements while still creating significant molding or tooling challenges.
An injection molding DFM review typically evaluates areas such as:
- Wall thickness
- Draft angles
- Ribs and bosses
- Undercuts
- Corner radii
- Gate location
- Parting lines
- Ejection requirements
- Mold complexity
- Tolerance feasibility
- Potential cosmetic concerns
The goal is not simply to make a part easier to manufacture.
Good DFM balances function, manufacturability, quality, tooling complexity, and production cost.
Finding a wall-thickness issue before tooling may require only a CAD revision. Finding the same problem after steel has been cut can require mold modification, additional trials, schedule changes, and significant rework.
Early engineering review therefore reduces both technical and financial risk.
3. Evaluate Material Selection Early
Material selection affects much more than the mechanical properties of the finished component.
Different polymers behave differently during filling, cooling, shrinkage, ejection, and long-term use.
Engineers should evaluate factors such as:
- Mechanical strength
- Impact resistance
- Temperature resistance
- Chemical resistance
- Shrinkage behavior
- Moisture sensitivity
- Flow characteristics
- Dimensional stability
- Surface requirements
- Regulatory requirements
- Material availability and cost
Material and part geometry should be evaluated together.
For example, switching from one resin family to another late in development may change shrinkage behavior, required processing conditions, dimensional results, and even tooling considerations.
Finalizing the material strategy early helps prevent unexpected changes during mold trials or production launch.
4. Reduce Unnecessary Design Complexity
Complex geometry is sometimes required by the product. But unnecessary complexity increases manufacturing risk.
Features such as deep undercuts, thin sections, difficult shutoffs, complex side actions, and difficult-to-access details can increase tooling complexity and maintenance requirements.
Before committing to tooling, engineers should ask:
- Is this feature required for product function?
- Can the geometry be simplified?
- Can an undercut be redesigned?
- Can multiple features be combined?
- Can the assembly strategy be improved?
- Does the design create difficult molding conditions?
Simplification does not mean compromising product performance.
The objective is to achieve the required function with the most robust manufacturing solution.
5. Apply Realistic Tolerances
Over-tolerancing is a common source of manufacturing risk and cost.
Injection molded parts naturally experience variation caused by material shrinkage, mold temperature, processing conditions, geometry, tooling, and environmental conditions.
Applying very tight tolerances to non-critical features can increase:
- Tooling complexity
- Inspection requirements
- Process sensitivity
- Scrap rates
- Production cost
Instead, tolerances should reflect actual functional requirements.
Critical-to-function dimensions should receive appropriate control, while non-critical dimensions should use practical manufacturing tolerances.
GD&T can also help define functional relationships more effectively than independently tightening multiple linear dimensions.
A tolerance strategy based on function improves manufacturability without sacrificing product performance.
6. Consider Tooling Risk, Not Just Part Design
A manufacturable part still requires a robust mold.
Tooling review should consider:
- Gate strategy
- Runner configuration
- Cooling layout
- Venting
- Ejection
- Parting surfaces
- Slides and lifters
- Mold steel selection
- Wear areas
- Replaceable inserts
- Maintenance accessibility
A mold designed only to produce an acceptable first sample may not be suitable for stable long-term production.
Production volume is particularly important.
A low-volume program and a high-volume production program may require different decisions regarding mold materials, cavity count, cooling strategy, automation, and tool durability.
Tooling should therefore be designed around the expected production environment—not only the geometry of the CAD model.
7. Prototype the Right Risks
Prototyping is valuable, but a prototype cannot validate every aspect of production manufacturing.
3D printing, machining, and other rapid prototyping processes are useful for evaluating:
- General geometry
- Fit
- Assembly
- Ergonomics
- Basic function
- Design concepts
However, these processes may not reproduce injection molding behavior.
They cannot always predict problems involving:
- Mold filling
- Shrinkage
- Weld lines
- Sink marks
- Ejection
- Gate vestige
- Production cycle time
- Long-term dimensional repeatability
Prototype testing should therefore focus on the questions the prototype can realistically answer.
Injection-molded trial parts are still necessary when molding behavior itself must be validated.
8. Use Mold Trials as an Engineering Feedback Loop
A mold trial should not be viewed simply as a step for producing sample parts.
It is an opportunity to evaluate how the tooling, material, process, and part design interact under real molding conditions.
During trials, engineering teams may review:
- Fill behavior
- Part appearance
- Dimensional results
- Ejection behavior
- Gate performance
- Venting effectiveness
- Cooling balance
- Warpage
- Cycle behavior
- Tooling operation
Trial results may identify the need for process adjustments, minor tooling refinements, or design changes.
The objective is to resolve these issues systematically before formal production validation.
9. Validate the Manufacturing Process
An approved sample does not automatically mean the process is ready for production.
A single good part may have been produced under carefully adjusted conditions that are difficult to repeat consistently.
Process validation should demonstrate that acceptable parts can be produced repeatedly within a stable manufacturing window.
Important considerations may include:
- Repeatability across molding cycles
- Dimensional consistency
- Process stability
- Material consistency
- Tool performance
- Critical quality characteristics
- Production inspection requirements
The goal is not simply to confirm that the mold can produce a good part.
The goal is to confirm that the manufacturing process can produce acceptable parts consistently.
10. Build Quality into the Process
Final inspection alone is not an effective manufacturing risk strategy.
Quality should be integrated into product design, tooling, process development, and production planning.
Depending on the project, quality controls may include:
- First article inspection
- Dimensional inspection
- CMM measurement
- Visual inspection
- Functional testing
- In-process inspection
- SPC monitoring
- Material traceability
- Production records
The inspection plan should focus particularly on characteristics that affect fit, function, safety, assembly, or customer requirements.
When production data is reviewed over time, engineers can also identify gradual process drift before it develops into a larger quality problem.
11. Manage Engineering Changes Carefully
Changes are common during product development, but poorly controlled engineering changes can introduce new manufacturing risks.
A change to one feature may affect:
- Mold geometry
- Cooling
- Filling behavior
- Ejection
- Assembly
- Dimensions
- Inspection methods
- Existing inventory
Engineering changes should therefore be evaluated across the entire manufacturing system.
Before implementing a revision, teams should understand what changed, why it changed, which tooling or processes are affected, and what needs to be revalidated.
Controlled change management helps prevent one improvement from creating another problem elsewhere.

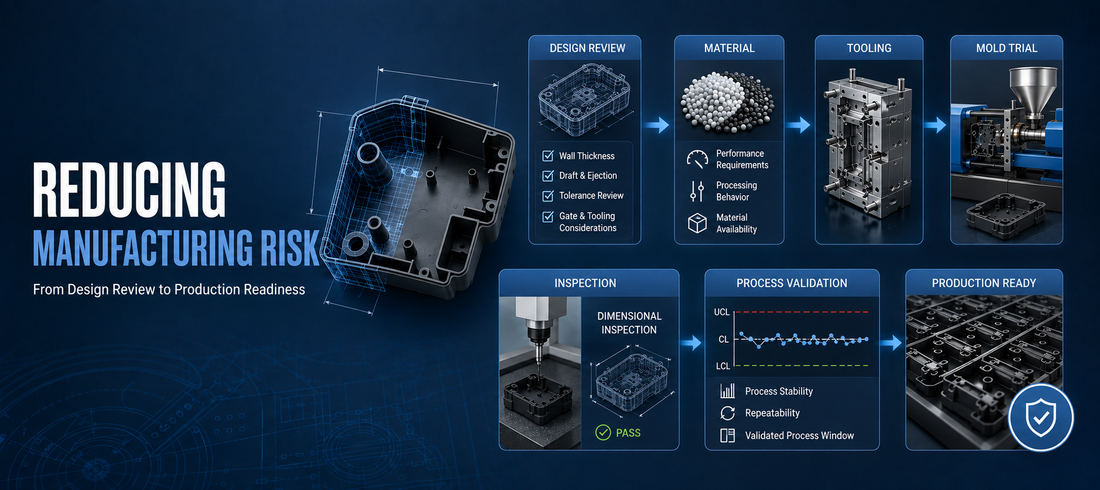

A Practical Manufacturing Risk Reduction Workflow
Manufacturing risk is easier to control when engineering decisions are reviewed at defined stages.
A practical workflow can include:
1. Define Product Requirements
Identify functional, dimensional, cosmetic, material, and production requirements.
2. Perform DFM Review
Evaluate geometry, tooling feasibility, draft, wall thickness, ejection, gates, and tolerances.
3. Confirm Material Strategy
Verify material performance, processing behavior, and availability.
4. Review Tooling Design
Evaluate mold construction, cooling, venting, gating, ejection, and maintenance requirements.
5. Prototype and Test
Validate geometry, fit, function, and other appropriate product requirements.
6. Conduct Mold Trials
Evaluate trial parts and actual tooling behavior.
7. Validate the Process
Confirm process stability, repeatability, and the validated processing window.
8. Transition to Controlled Production
Apply appropriate inspection, traceability, and production quality controls.
This approach moves risk identification earlier in development, where engineering changes are generally easier to implement.
Reducing Risk Means Designing for Production
Manufacturing risk cannot be eliminated completely.
Materials vary. Processes have natural variation. Tooling wears. Requirements change.
The objective is therefore not to create a theoretically risk-free manufacturing process. It is to identify important risks early, understand their impact, and establish appropriate engineering controls before they affect production.
Successful manufacturing programs connect product design, DFM, materials, tooling, process development, validation, and quality rather than treating them as separate activities.
When these decisions are reviewed together, teams can reduce late-stage changes, improve production stability, and move from prototype approval to production readiness with greater confidence.
