Snap-Fit Design Guide

Introduction

Snap-fit joints are widely used to assemble injection molded plastic components without screws, adhesives, or separate fasteners.

A properly designed snap fit can reduce part count, simplify assembly, shorten production time, and lower total manufacturing cost. However, poor snap-fit geometry may cause excessive assembly force, permanent deformation, cracking, weak retention, or premature fatigue failure.

Successful snap-fit design requires a balance between flexibility, strength, material behavior, moldability, and the intended assembly process.

This guide explains the key principles engineers should consider when designing snap-fit features for injection molded plastic parts.

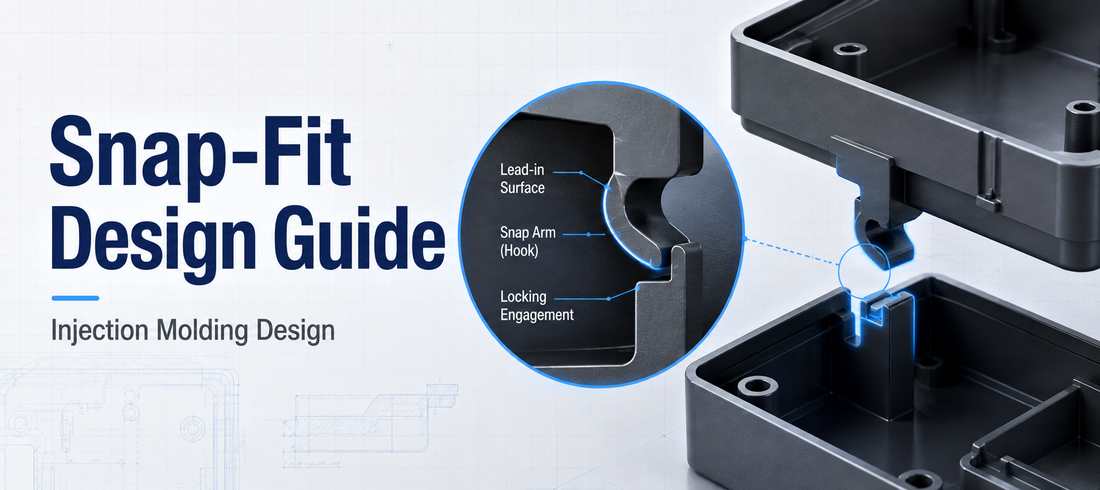

What Is a Snap Fit?

A snap fit is an integrated fastening feature that temporarily deforms during assembly and then returns toward its original position to engage a mating component.

Most snap fits include:

• A flexible arm or hook
• An undercut or locking feature
• A lead-in surface
• A retaining surface
• A mating opening or ledge

During assembly, the lead-in surface pushes the snap arm away from its normal position. Once the hook passes the mating feature, the arm recovers and locks the components together.

Depending on the geometry, the joint may be permanent, serviceable, or designed for repeated assembly.

Why Use Snap-Fit Joints?

Snap fits can provide several manufacturing and product-design advantages:

• Reduced fastener count
• Faster assembly
• Lower labor requirements
• Fewer purchased components
• Simplified product architecture
• Easier automated assembly
• Cleaner external appearance
• Reduced product weight

Because the fastening feature is molded directly into the component, snap fits can eliminate additional drilling, adhesive application, or screw-installation operations.

These benefits depend on correct design. An undersized snap may not retain the assembly, while an overly stiff snap may break during installation.

Common Types of Snap Fits

Cantilever Snap Fits

The cantilever snap is the most common design for injection molded components.

It consists of a flexible arm fixed at one end with a hook or retention feature at the free end. During assembly, the arm bends as the hook moves over the mating edge.

Cantilever snap fits are commonly used in:

• Electronic housings
• Consumer products
• Automotive trim
• Covers and enclosures
• Battery compartments
• Medical device housings

Their simple geometry makes them relatively easy to analyze and manufacture.

Annular Snap Fits

Annular snap fits use a circular or ring-shaped feature that expands or contracts during assembly.

Typical applications include:

• Caps
• Containers
• Cylindrical housings
• Connectors
• Fluid-handling components

Annular designs distribute retention around the circumference, but assembly force can become high if the interference is excessive.

Torsional Snap Fits

Torsional snap fits deform by twisting rather than primarily bending.

They may be used for:

• Latches
• Release mechanisms
• Hinged covers
• Reusable closures

These designs can provide controlled movement but often require more detailed structural analysis.

U-Shaped Snap Fits

A U-shaped snap uses a longer folded load path to increase flexibility within a limited product envelope.

It can be useful when a conventional cantilever arm would be too short or too stiff.

However, the folded geometry may increase mold complexity and require careful review of tooling access and ejection.

Key Snap-Fit Design Elements

Snap Arm Length

Arm length has a major influence on flexibility.

A longer arm generally bends more easily and produces lower strain for the same amount of deflection. A short arm is stiffer and may require excessive assembly force.

When space is limited, engineers may improve flexibility by:

• Extending the arm into an unused area
• Using a curved or U-shaped load path
• Reducing arm thickness
• Applying a gradual taper
• Selecting a more flexible material

Increasing flexibility should not compromise retention strength or product durability.

Snap Arm Thickness

Thickness strongly affects snap stiffness.

A small increase in thickness can significantly increase the force required to deflect the arm. Excessive thickness may make assembly difficult and increase stress at the snap root.

The snap arm should normally be designed in proportion to the surrounding wall rather than treated as a solid, heavy feature.

Gradual transitions are preferable to sudden thickness changes because they improve stress distribution and reduce molding defects.

Snap Width

A wider snap arm can support greater load, but it also increases assembly force.

Instead of using one extremely wide snap, multiple smaller snaps may provide:

• More balanced retention
• Better load distribution
• Lower local stress
• More stable assembly

The number and position of snap features should also consider part alignment, tolerance variation, and the sequence in which the product is assembled.

Undercut Depth

The undercut determines how far the snap must deflect during assembly and how securely it retains the mating component.

A deeper undercut can increase retention, but it also increases:

• Required deflection
• Assembly force
• Material strain
• Risk of permanent deformation
• Tooling complexity

The undercut should be only as large as necessary to meet the functional retention requirement.

Lead-In Angle

The lead-in surface guides the snap over the mating edge during assembly.

A gradual lead-in angle typically reduces insertion force, while a steeper angle increases resistance.

The best angle depends on:

• Material friction
• Required deflection
• Assembly direction
• Surface finish
• Manual or automated assembly
• Allowable installation force

Smooth surfaces and rounded transitions can also reduce friction and prevent damage during installation.

Retention Angle

The retention surface controls how easily the joint can be separated.

A near-vertical retention face provides strong locking and is suitable for permanent assemblies. A shallower retention angle allows easier release and may be appropriate for serviceable products.

The retention angle should reflect whether the assembly is intended to be:

• Permanent
• Serviceable with a tool
• Removable by hand
• Opened repeatedly

Trying to make one geometry serve all four functions often results in unreliable performance.

Control Strain at the Snap Root

The root of a cantilever snap usually experiences the highest bending stress.

A sharp corner at this location creates additional stress concentration and increases the risk of cracking.

The snap root should include a smooth radius that transitions gradually into the supporting wall.

Good root design can help:

• Reduce peak stress
• Improve load distribution
• Increase fatigue life
• Prevent stress whitening
• Reduce cracking during assembly

The transition should not create an excessively thick section, as this may cause sink marks or uneven cooling.

A tapered arm can further improve performance by distributing strain more evenly along the snap instead of concentrating it at the fixed end.

Snap-Fit Material Selection

Material properties have a direct effect on snap-fit performance.

Important characteristics include:

• Allowable strain
• Elastic modulus
• Fatigue resistance
• Creep resistance
• Impact strength
• Environmental resistance
• Moisture sensitivity

Polypropylene

Polypropylene is frequently used for flexible snap fits because of its good strain capability and fatigue resistance.

It is especially suitable for features that may be flexed repeatedly, although long-term load and temperature conditions should still be evaluated.

ABS

ABS provides good dimensional stability, surface appearance, and general toughness.

It is suitable for many enclosure snap fits, but designs should avoid excessive deflection and sharp root corners.

Polycarbonate

Polycarbonate provides high impact resistance and can perform well in durable snap-fit applications.

Residual stress, chemical exposure, and long-term loading should be considered, particularly in demanding environments.

Nylon

Nylon offers good toughness and fatigue performance.

However, moisture absorption can change stiffness and dimensions. Snap performance should therefore be evaluated under the expected environmental conditions.

POM

POM provides low friction, dimensional stability, and good fatigue properties.

It is often used in mechanical clips, latches, and moving snap features. Its low-friction surface can reduce assembly force but may also affect retention behavior.

Glass-Filled Materials

Glass reinforcement increases stiffness but generally reduces flexibility and allowable strain.

A snap designed for unfilled nylon should not automatically be used with glass-filled nylon. Reinforced materials often require longer arms, lower deflection, larger root radii, or an alternative fastening method.

Material data from the selected grade should be reviewed rather than relying only on generic resin-family properties.

Design for Assembly and Disassembly

Snap-fit design should begin with a clear assembly strategy.

Engineers should define:

• Assembly direction
• Required insertion force
• Allowable operator force
• Automation requirements
• Alignment method
• Required retention load
• Serviceability
• Number of expected cycles

Guide features can help align components before the snap begins to deflect. This reduces side loading and prevents the snap from being forced in the wrong direction.

For serviceable products, include accessible release points and enough clearance for the intended tool or finger operation.

The product should not require uncontrolled bending of surrounding walls to release the snap.

Injection Molding Considerations

Snap-fit geometry must also be compatible with mold construction.

Draft Angles

Snap arms and surrounding walls require sufficient draft for reliable ejection.

Draft should be applied without changing the critical engagement geometry or weakening the retaining feature.

Undercuts

Some snap hooks create undercuts that cannot be released by a simple straight-pull mold.

Possible tooling solutions include:

• Lifters
• Slides
• Collapsible features
• Flexible stripping
• Parting-line placement
• Redesigning the hook orientation

Tooling complexity should be evaluated early because side actions can increase mold cost, maintenance requirements, and cycle time.

Gate Location

Gate location affects fiber orientation, weld lines, shrinkage, and mechanical performance.

A weld line near the snap root may create a weak area. The gate strategy should encourage consistent filling through the snap feature and avoid trapping air around the hook.

Ejection

Ejector forces should not bend or damage the snap during part removal.

Snap features should have enough clearance from ejector pins, mold inserts, and other moving components.

Common Snap-Fit Design Mistakes

1. Making the Snap Arm Too Short

A short arm is stiff and may experience excessive strain.

Better approach: Increase the effective arm length or use a folded load path where space permits.

2. Using Excessive Undercut

A deep undercut increases deflection and assembly force.

Better approach: Use only the engagement required to achieve the specified retention load.

3. Adding a Sharp Root Corner

A sharp transition concentrates stress at the highest-loaded area.

Better approach: Use a smooth root radius and a gradual transition into the supporting wall.

4. Ignoring Material Creep

A snap held continuously in a deflected condition may lose retention over time.

Better approach: Design the snap so it returns close to its original position after engagement and minimize sustained strain.

5. Using Reinforced Resin Without Redesign

Glass-filled materials are generally stiffer and less tolerant of snap deflection.

Better approach: Recalculate the geometry for the specific material grade.

6. Designing Without Assembly Tolerances

Dimensional variation can make some assemblies loose and others impossible to install.

Better approach: Conduct tolerance analysis across the snap, mating feature, housing, and alignment surfaces.

7. Ignoring Tooling Direction

A functional snap geometry may require expensive slides or lifters.

Better approach: Review mold opening direction and undercuts before finalizing the design.

Snap-Fit Design Checklist

Before releasing a snap-fit component for tooling, verify that:

• The snap type matches the intended function
• Arm length provides sufficient flexibility
• Arm thickness does not create excessive stiffness
• Undercut depth is no greater than necessary
• Lead-in geometry supports smooth assembly
• Retention geometry matches service requirements
• The root includes a smooth radius
• The selected material can tolerate the required strain
• Creep and fatigue have been considered
• Assembly tolerances have been analyzed
• Draft and ejection requirements are addressed
• Tooling undercuts have been reviewed
• Gate location does not weaken the snap
• Assembly force and retention force will be tested

Prototype and Validate the Snap Fit

Snap-fit performance should be validated before production tooling is finalized.

Prototypes can help evaluate:

• Assembly force
• Retention strength
• Release force
• Stress whitening
• Permanent deformation
• Alignment
• Operator accessibility
• Repeated-cycle durability

Prototype material and manufacturing process can affect the results. A 3D-printed snap may not behave exactly like an injection molded snap because of differences in material properties, layer orientation, and surface finish.

Whenever possible, validation should use representative materials and production-like geometry.

Frequently Asked Questions

1. What is the best material for snap fits?

There is no single best material. The correct choice depends on required deflection, retention force, fatigue life, temperature, chemical exposure, and product environment. Polypropylene, nylon, POM, ABS, and polycarbonate are commonly considered.

2. How can assembly force be reduced?

Assembly force can often be reduced by increasing arm length, reducing thickness, decreasing undercut, improving the lead-in angle, adding a root radius, or selecting a more flexible material.

3. Can glass-filled plastic be used for snap fits?

Yes, but reinforced plastics are generally less flexible than unfilled grades. The snap geometry must be designed for the properties of the specific reinforced material.

4. Can snap fits be designed for repeated use?

Yes. Reusable snap fits require suitable material fatigue resistance, controlled strain, an accessible release method, and geometry that avoids permanent deformation.

5. Do snap fits increase mold cost?

Simple snap fits may be produced in a straight-pull mold, but undercuts can require slides, lifters, or other mold actions. Early DFM review can help simplify the geometry and control tooling cost.
