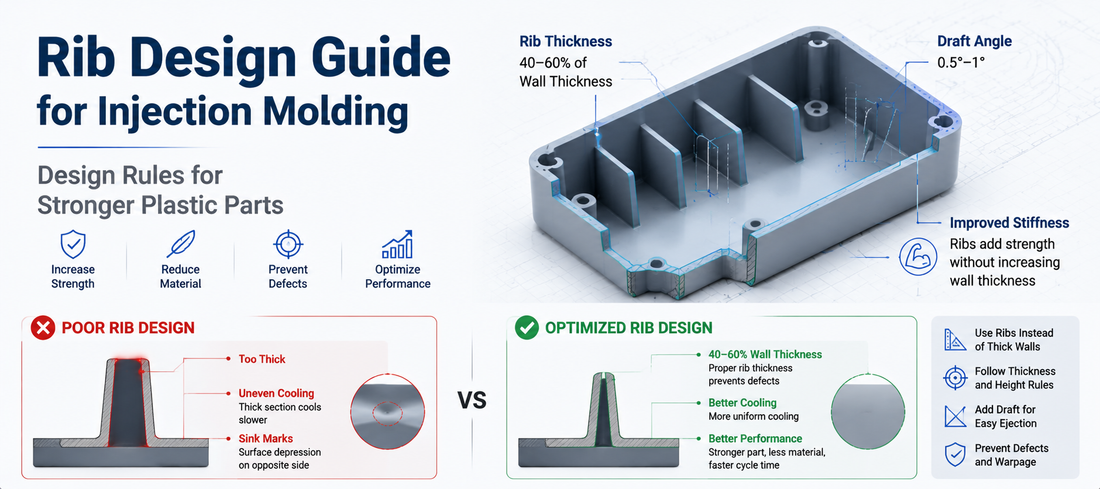

Rib Design Guide

Introduction

Ribs are one of the most commonly used design features in injection molded parts. They provide additional strength and stiffness without significantly increasing wall thickness or material usage.

A properly designed rib structure can improve part performance, reduce material consumption, and maintain dimensional stability. However, improper rib design can create injection molding defects such as sink marks, warpage, short shots, and difficult ejection.

For product designers and engineers, understanding rib design principles during the early development stage is essential for creating strong, lightweight, and manufacturable plastic components.

This guide explains injection molding rib design rules, recommended dimensions, common mistakes, and DFM considerations to help engineers optimize plastic part designs.

What Are Ribs in Injection Molded Parts?

Ribs are thin, raised support structures added to plastic components to increase stiffness and strength without adding excessive material thickness.

Instead of making a part wall thicker, engineers use ribs to reinforce weak areas while maintaining more uniform cooling behavior.

Common applications include:

• Plastic housings
• Electronic enclosures
• Automotive components
• Consumer products
• Industrial equipment parts

A well-designed rib improves structural performance while reducing material usage and production costs.

Why Rib Design Matters in Injection Molding

1. Increase Part Strength Without Increasing Wall Thickness

Adding thickness is not always the best way to improve strength.

Thicker walls can create:

• Longer cooling times
• Increased material consumption
• Sink marks
• Internal voids

Ribs provide additional support while maintaining a more consistent wall thickness.

2. Improve Structural Stiffness

Plastic parts often require additional rigidity to withstand:

• Mechanical loads
• Assembly forces
• Impact conditions
• Long-term use

Properly positioned ribs help distribute stress and prevent bending or deformation.

3. Reduce Manufacturing Risks

Poor rib design can negatively affect injection molding performance.

Common problems include:

• Sink marks on cosmetic surfaces
• Warpage caused by uneven cooling
• Difficult ejection
• Increased cycle time

Optimized rib geometry improves both part quality and mold manufacturability.

Rib Thickness Design Guidelines

One of the most important rib design rules is maintaining proper rib thickness.

1.  Recommended Rib Thickness

General guideline:

Rib thickness should typically be 40–60% of the nominal wall thickness.

Example:

If the main wall thickness is:

• 2.5 mm

Recommended rib thickness:

• Approximately 1.0–1.5 mm

2. Why Avoid Thick Ribs?

A rib that is too thick creates a localized thick section.

This causes:

• Slower cooling
• Higher shrinkage
• Surface sink marks

Instead of improving strength, oversized ribs can reduce part appearance and dimensional accuracy.

Rib Height Design Guidelines

Rib height affects both structural performance and mold filling.

General recommendations:

• Rib height should generally be limited to approximately 3 times the rib thickness
• Deeper ribs may require additional draft and careful mold design

Very tall ribs can increase:

• Filling difficulty
• Ejection resistance
• Mold complexity

For deep ribs, engineers should evaluate draft angle, material flow, and tooling requirements.

Rib Spacing and Layout Design

Proper rib placement is important for both strength and molding performance.

Recommended Practices:

1. Use ribs along load directions

Ribs should be positioned where structural reinforcement is needed most.

Examples:

• Supporting flat panels
• Reinforcing mounting areas
• Increasing enclosure stiffness

2. Avoid excessive rib density

Too many ribs can create:

• Uneven cooling
• Increased filling resistance
• Additional tooling complexity

A balanced rib layout provides strength without unnecessary material.

Rib Draft Angle Design

Ribs require draft angles to allow smooth mold release.

Recommended:

• Minimum draft: approximately 0.5° per side
• More draft may be required for deeper ribs

Without sufficient draft, ribs can stick to the mold core and increase ejection force.

Proper rib draft helps prevent:

• Rib damage
• Part deformation
• Mold wear

Rib Design and Sink Marks

Sink marks are one of the most common defects related to rib design.

1. Why Sink Marks Occur

When a rib is too thick compared with the main wall:

1. The rib area contains more material
2. Cooling happens unevenly
3. Shrinkage pulls the surface inward

Result:

• Visible depressions on the opposite surface

2. How to Prevent Sink Marks

Recommended solutions:

• Keep rib thickness within 40–60% of wall thickness

• Reduce unnecessary rib height

• Add ribs instead of thickening walls

• Maintain consistent material distribution

Common Rib Design Mistakes

1. Designing Ribs Too Thick

Problem:

A thick rib creates a localized heavy section.

Potential Issues:

• Sink marks
• Voids
• Longer cooling time
• Increased cycle time

Solution:

Reduce rib thickness and optimize geometry.

2. Using Ribs Without Draft

Problem:

Vertical rib walls create excessive friction during ejection.

Potential Issues:

• Part sticking
• Rib deformation
• Mold damage

Solution:

Add appropriate draft angle to rib walls.

3. Adding Too Many Ribs

Problem:

Over-designed rib structures increase complexity.

Potential Issues:

• Poor material flow
• Uneven cooling
• Higher tooling cost

Solution:

Use ribs only where structural reinforcement is required.

Rib Design Best Practices for Injection Molding

• Keep rib thickness around 40–60% of wall thickness

• Add draft angle to rib walls

• Use ribs instead of increasing wall thickness

• Position ribs according to load requirements

• Avoid excessive rib height and density

• Maintain consistent material distribution

• Consider mold filling and ejection during design

Rib Design Considerations During DFM Review

A professional DFM (Design for Manufacturability) review evaluates rib geometry before tooling development.

Engineers typically analyze:

1. Rib Thickness

Check whether rib dimensions may create thick sections or sink marks.

2. Mold Filling

Evaluate whether ribs affect:

• Plastic flow direction
• Filling pressure
• Weld line location

3. Ejection Requirements

Confirm ribs can release without excessive friction or deformation.

4. Tooling Complexity

Consider:

• Core design
• Cooling layout
• Mold machining requirements

Early DFM analysis helps identify rib-related issues before they become expensive tooling changes.

Conclusion

Rib design is a critical element of successful injection molded part development. Properly designed ribs improve strength, reduce material usage, and maintain better dimensional stability.

By following rib thickness, height, spacing, and draft angle guidelines, engineers can create lightweight plastic parts that are easier to manufacture and more reliable in production.

Working with an experienced tooling partner during the design stage can help optimize rib structures, prevent molding defects, and reduce manufacturing risks.
