Parting Line Design Guide

Introduction

A parting line is the visible or functional boundary where two sections of an injection mold meet. Although it may appear to be a minor tooling detail, its location can affect part appearance, dimensional accuracy, mold complexity, flash risk, ejection, and manufacturing cost.

Parting-line decisions should therefore be made during product design rather than left until mold manufacturing begins.

A well-planned parting line helps create a simpler mold, protects critical surfaces, reduces secondary finishing, and supports more stable production. A poorly positioned parting line may cross cosmetic areas, interfere with sealing surfaces, complicate tolerances, or require unnecessary slides and inserts.

This guide explains the main factors engineers should consider when selecting and reviewing parting lines for injection molded plastic parts.

What Is a Parting Line?

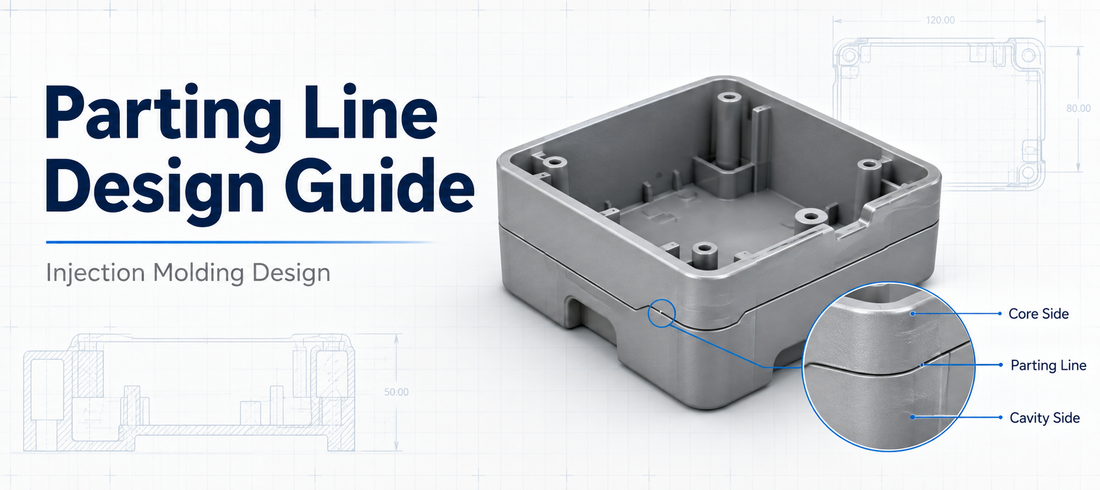

The parting line is formed where the core and cavity sides of an injection mold separate.

When the mold closes, these surfaces meet to form the molding cavity. After the plastic cools, the mold opens along this interface so the part can be removed.

The resulting line may appear as:

• A fine seam around the component
• A slight change in surface texture
• A narrow raised line caused by minor flash
• A visible boundary between mold surfaces
• A dimensional transition along the part perimeter

Parting lines are common and often unavoidable. The design objective is not always to eliminate them, but to place and control them so they do not affect product function or appearance.

Why Parting-Line Location Matters

Parting-line placement influences both part design and mold construction.

It can affect:

• Mold opening direction
• Core and cavity assignment
• Draft requirements
• Undercut formation
• Slide and lifter requirements
• Flash visibility
• Dimensional consistency
• Surface finishing
• Ejection
• Tool maintenance

A parting line located around a simple outer perimeter may support a straightforward two-plate mold. Moving it across complex geometry may create difficult shutoffs, thin steel conditions, or additional mold actions.

The best location balances product requirements with practical tooling.

Start with the Mold Opening Direction

Parting-line design begins by identifying the preferred mold opening direction.

The mold should ideally open in a direction that allows the part to release without trapping features on either the core or cavity side.

Engineers should review:

• External walls
• Internal cavities
• Ribs and bosses
• Openings
• Clips and hooks
• Textures
• Sealing features
• Assembly interfaces

Features parallel to the opening direction generally require draft. Features perpendicular to it may create undercuts.

Changing the opening direction can sometimes simplify one area while creating problems elsewhere, so the complete component must be reviewed as one system.

Place the Parting Line Along a Natural Boundary

Whenever possible, position the parting line along an existing edge, contour, or change in geometry.

Suitable locations may include:

• The edge of a housing
• A flange perimeter
• A product silhouette
• A step between two surfaces
• A decorative break line
• The lower edge of a visible wall
• A noncritical rear surface

Using a natural boundary makes the line less noticeable and may simplify mold construction.

Placing a parting line across a broad, uninterrupted cosmetic surface can make even a small mismatch or flash line highly visible.

For consumer-facing products, the line should normally be moved away from the primary viewing area when tooling and function allow.

Cosmetic Surface Considerations

Parting lines can affect appearance through:

• Visible seams
• Flash
• Core-cavity mismatch
• Texture interruption
• Gloss variation
• Local polishing differences

A textured surface requires particular attention. If the parting line passes through texture, both mold halves must align accurately. Even minor mismatch may create a visible step.

Deep textures also require additional draft. Without enough draft, the texture may drag during ejection and damage the surface.

For cosmetic components, identify surface priority during the design review:

• Class A: primary visible surface
• Class B: secondary visible surface
• Class C: hidden or noncritical surface

The parting line should generally be kept away from Class A surfaces and placed on lower-priority areas whenever feasible.

Avoid Critical Sealing Surfaces

A parting line should not cross a sealing surface unless the design and tooling have been specifically engineered to control it.

Flash, mismatch, or wear at the mold interface may affect:

• Gasket compression
• Fluid sealing
• Air sealing
• Dust protection
• Pressure retention
• Adhesive bonding

For O-ring grooves, valve seats, cap interfaces, and fluid-control parts, the sealing path should ideally remain within one continuous mold surface.

When a parting line cannot be avoided, the design may require tighter tooling tolerances, precision inserts, secondary machining, or a revised seal configuration.

Protect Critical Assembly Features

Parting lines should also be kept away from surfaces that control assembly and alignment.

Examples include:

• Bearing locations
• Connector interfaces
• Snap-fit engagement areas
• Datum surfaces
• Sliding surfaces
• Press-fit features
• Precision holes
• Optical interfaces

A small raised seam can interfere with insertion, movement, or measurement.

If a parting line must cross a functional area, specify which side controls the critical dimension and how flash will be managed.

Parting Lines and Draft Angles

The parting line establishes where draft changes direction.

Surfaces on one side of the line draft toward the core, while surfaces on the other side draft toward the cavity.

Poor coordination between draft and parting-line location can cause:

• Mold locking
• Surface drag
• Difficult ejection
• Dimensional change
• Visible geometry distortion

Designers should avoid adding draft independently to each wall without first establishing the mold direction and parting plane.

For symmetrical housings, a centered parting line may allow draft to move outward in both directions. For deep enclosures, placing the opening on one side may allow most walls to release from a single core.

Parting Lines and Undercuts

An undercut is a feature that prevents the part from releasing in the primary mold-opening direction.

Parting-line location can either eliminate or create an undercut.

For example, a side projection may be molded without a slide if it is placed directly on the parting line. Moving the same feature above or below the parting plane may require a side action.

Common undercut-producing features include:

• Snap hooks
• Side holes
• Latches
• Windows
• Grooves
• Connector openings
• External threads

Before adding slides or lifters, evaluate whether the parting line can be repositioned to form the feature through the core and cavity interface.

This can reduce tooling cost, cycle time, and maintenance.

Shutoff Surface Design

A shutoff is an angled mold interface used to form an opening or feature without a separate side action.

Shutoffs are commonly used around:

• Side windows
• Clip openings
• Ventilation slots
• Through-holes
• Latch features

The mating mold surfaces require sufficient angle and steel support to close reliably.

Poor shutoff design may result in:

• Flash
• Mold wear
• Chipping
• Difficult fitting
• Short tool life

Long, nearly vertical shutoffs are more difficult to manufacture and maintain. Where possible, use generous shutoff angles and avoid thin, unsupported mold steel.

Minimize Stepped and Complex Parting Lines

A flat parting plane is usually the simplest solution, but many molded parts require stepped or contoured parting lines.

Complex parting lines may be necessary to:

• Follow the product silhouette
• Hide the line from view
• Avoid undercuts
• Protect functional surfaces
• Form irregular geometry

However, complexity can increase:

• CNC and EDM machining
• Mold fitting time
• Flash risk
• Maintenance requirements
• Tooling cost

Use a contoured parting line only when it provides a clear functional, cosmetic, or tooling benefit.

Unnecessary small steps, sharp changes, and fragmented interfaces should be avoided.

Control Flash Risk

Flash is excess plastic that escapes between mold surfaces.

It commonly appears along:

• Parting lines
• Inserts
• Slides
• Lifters
• Ejector components
• Shutoff surfaces

Flash may be caused by tooling wear, excessive pressure, insufficient clamping, contamination, or poor mold fitting.

Part design can reduce risk by avoiding:

• Very thin edges at the parting line
• Weak mold steel
• Long unsupported shutoffs
• Parting lines through high-pressure filling zones
• Difficult-to-maintain interfaces

The acceptable level of flash should be defined according to function and appearance.

A tiny seam acceptable on a hidden industrial housing may be unacceptable on a medical component, sealing feature, or premium consumer product.

Consider Gate and Vent Locations

Parting-line design should be coordinated with the gate and venting strategy.

Edge gates are often positioned at the parting line because they are relatively easy to machine and remove. However, gate location must still support balanced filling and acceptable appearance.

Vents are also commonly placed along the parting surface, especially near the end of fill.

The design team should consider:

• Where material enters the cavity
• Where flow fronts meet
• Where air exits
• Whether the gate mark is visible
• Whether local pressure increases flash risk
• Whether the parting line crosses a weld-line-sensitive area

Parting line, gate position, venting, and flow direction should be reviewed together rather than as separate decisions.

Dimensional Control Across the Parting Line

Features formed entirely in one mold half are generally easier to control than dimensions that depend on alignment between both halves.

Dimensions crossing the parting line may be influenced by:

• Mold alignment
• Insert fitting
• Thermal expansion
• Tool wear
• Clamp conditions
• Core-cavity mismatch

For critical dimensions, keep related surfaces in the same mold half whenever possible.

This principle is especially important for:

• Precision openings
• Mating diameters
• Alignment rails
• Optical features
• Sliding interfaces
• Sealing geometry

The drawing should identify critical datums and clarify whether parting-line mismatch is included within the dimensional tolerance.

Core-Cavity Mismatch

Core-cavity mismatch occurs when the two mold halves are slightly misaligned.

It may produce:

• A visible step
• Uneven wall thickness
• Assembly interference
• Dimensional variation
• Uneven flash

Mismatch is more noticeable when the parting line crosses a smooth surface or small precision feature.

Using natural edges, steps, or recessed locations can make minor mismatch less visible and less functionally significant.

The mold may also use interlocks, guide components, and precision inserts to improve alignment in critical areas.

Parting Lines Around Holes and Openings

Holes formed parallel to the mold-opening direction can often be produced with core pins.

Side holes may require:

• Slides
• Lifters
• Angled pins
• Parting-line shutoffs
• Secondary machining

Positioning a hole on the parting line may simplify tooling, but it can introduce a seam or slight mismatch through the hole.

For fluid, bearing, or precision-pin applications, that seam may be unacceptable.

The manufacturing method should be selected according to the required tolerance, surface finish, and function.

Common Parting-Line Design Mistakes

1. Placing the Line Across a Primary Cosmetic Surface

This makes seams, texture mismatch, and flash highly visible.

Better approach: Move it toward an edge, step, rear surface, or natural product boundary.

2. Ignoring the Mold Opening Direction

A visually attractive line may create trapped geometry or expensive side actions.

Better approach: Establish the mold direction before finalizing the external form.

3. Crossing a Sealing Surface

Flash or mismatch may compromise sealing performance.

Better approach: Keep the seal within one mold half or redesign the sealing path.

4. Creating Thin Mold Steel

Complex parting geometry may leave narrow steel sections vulnerable to damage.

Better approach: Simplify the contour and maintain adequate tool strength.

5. Overcomplicating the Parting Surface

Small steps and unnecessary contours increase fitting and maintenance.

Better approach: Use the simplest parting plane that satisfies appearance and function.

6. Ignoring Tolerance Stack-Up

Dimensions formed by both mold halves may vary more than expected.

Better approach: Place critical related features in the same mold half where possible.

7. Treating the Parting Line as a Tooling-Only Decision

Late changes can affect product appearance, assembly, and tooling cost.

Better approach: Include parting-line review during early DFM.

Parting-Line Design Checklist

Before releasing a plastic part for tooling, verify that:

• The mold-opening direction is clearly defined
• The part can release without unintended undercuts
• The line follows a natural boundary where possible
• Primary cosmetic surfaces are protected
• Sealing surfaces are not interrupted
• Critical assembly features remain clear of flash
• Draft direction matches the parting strategy
• Shutoffs have sufficient angle and steel support
• Slides and lifters are used only when necessary
• Thin mold steel has been avoided
• Gate and vent locations are coordinated
• Critical dimensions do not unnecessarily cross the line
• Core-cavity mismatch has been considered
• Flash acceptance criteria are defined
• The design has completed a DFM review

Frequently Asked Questions

1. Can an injection molded part be made without a parting line?

Most conventional injection molded parts have some form of parting line because the mold must open to release the component. The line can often be hidden or incorporated into an existing edge.

2. Where should the parting line be placed?

It should normally follow a natural boundary, avoid critical cosmetic and functional surfaces, and support a simple mold-opening direction.

3. Can a parting line create flash?

Yes. Flash commonly appears where mold surfaces meet. Proper tool design, fitting, clamping, and process control help minimize it.

4. Should a sealing surface cross the parting line?

It is generally preferable to avoid this. When unavoidable, the interface requires careful tolerance, flash, and tooling control.

5. Can moving the parting line reduce tooling cost?

Yes. A revised parting-line location may eliminate undercuts, slides, lifters, or complex shutoffs.

6. Is a complex parting line always a problem?

Not necessarily. A contoured line may improve appearance or simplify feature formation, but it should provide enough benefit to justify the added tooling complexity.

Need Engineering Support?

Parting-line design affects mold construction, surface appearance, dimensional control, flash risk, and production stability.

The AccuMolds engineering team can review your CAD model, mold-opening direction, parting-line location, undercuts, shutoffs, draft, tolerances, and cosmetic requirements before tooling begins.

Our engineering support includes:

• DFM analysis
• Plastic part design review
• Parting-line optimization
• Mold-flow considerations
• Precision mold design
• Prototype development
• Injection molding production

👉 Request a Quote
