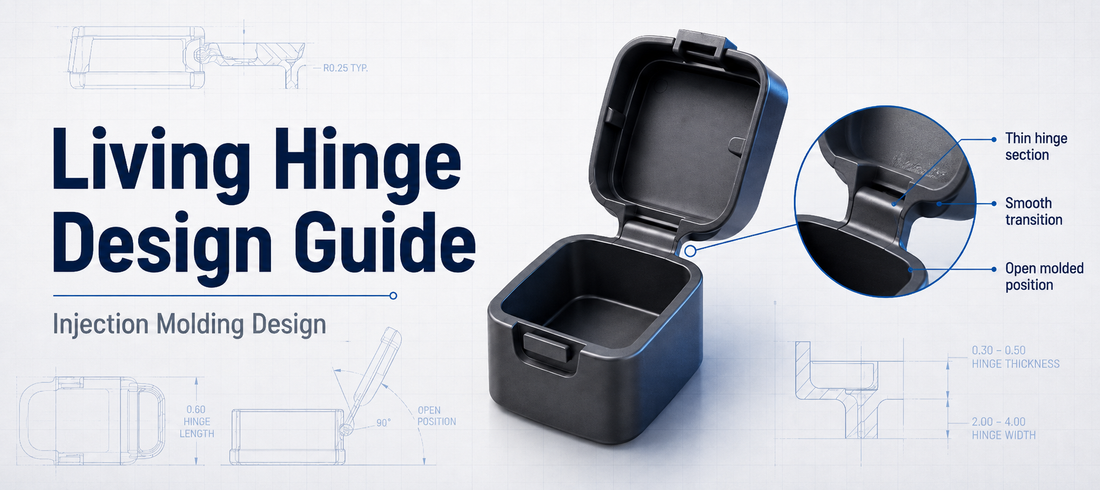

Living Hinge Design Guide

Introduction

A living hinge is a thin, flexible section of plastic that connects two rigid areas of the same molded part. It allows the connected sections to bend or rotate without using a separate mechanical hinge, pin, or fastener.

Living hinges are commonly used in caps, closures, packaging, electronic housings, medical products, and consumer components. When properly designed and molded, they can support repeated opening and closing while reducing part count and assembly requirements.

However, living hinges are highly sensitive to material selection, hinge thickness, flow orientation, corner geometry, and molding conditions. A hinge that is too thick may be difficult to flex, while one that is too thin may tear or fail during assembly.

This guide explains the main design principles engineers should consider when developing injection molded living hinges.

What Is a Living Hinge?

A living hinge is formed by reducing the thickness of a plastic part along a controlled bending line.

Unlike a conventional hinge, it does not require:

• A metal pin
• Separate hinge components
• Screws
• Adhesives
• Secondary assembly

The hinge, lid, and main body can often be produced as a single molded component.

During use, the thin hinge section bends while the surrounding areas remain relatively rigid. The material must tolerate this repeated deformation without cracking or permanently losing its shape.

Why Use a Living Hinge?

Living hinges can provide several product and manufacturing advantages:

• Reduced component count
• Faster assembly
• Lower labor requirements
• Fewer purchased fasteners
• Lightweight construction
• Clean product appearance
• Simplified inventory
• Improved recyclability for single-material parts

They are particularly valuable in high-volume production, where eliminating even one assembly operation can significantly reduce total manufacturing cost.

Living hinges can also improve product reliability by removing loose pins, springs, and other mechanical components that may wear or become detached.

Common Living Hinge Applications

Living hinges are used in a wide range of products, including:

• Flip-top bottle caps
• Food container lids
• Cosmetic packaging
• Storage boxes
• Electrical enclosure covers
• Protective caps
• Cable-management components
• Medical device covers
• Access panels
• Small reusable closures

The operating requirements vary by application.

A disposable package may only need to open a few times, while a consumer or medical product may require hundreds or thousands of bending cycles. The expected service life should be defined before the hinge geometry and material are selected.

Material Selection for Living Hinges

Material selection is one of the most important decisions in living hinge design.

The resin must be flexible enough to bend through the required angle while also providing adequate fatigue resistance, toughness, and environmental stability.

Polypropylene

Polypropylene is the most widely used material for injection molded living hinges.

It offers:

• Good flexibility
• Excellent fatigue resistance
• Low density
• Good chemical resistance
• Reliable molding performance
• Cost-effective high-volume production

Properly designed polypropylene hinges can withstand repeated flexing without cracking.

Different polypropylene grades may behave differently, so the selected resin should be evaluated for melt flow, impact resistance, stiffness, and hinge performance.

Polyethylene

Polyethylene can also be used for flexible hinge applications.

It generally provides good toughness and flexibility, but it may offer less stiffness and dimensional control than polypropylene.

Polyethylene may be suitable for:

• Flexible packaging closures
• Protective caps
• Low-load covers
• Simple reusable containers

Other Thermoplastics

Some engineering plastics may be used for limited-flex or one-time hinges, but many rigid or glass-filled materials do not perform well under repeated bending.

Potential concerns include:

• Low allowable strain
• Brittle cracking
• Poor fatigue resistance
• Stress concentration
• Fiber disruption
• Permanent deformation

Materials such as ABS, polycarbonate, nylon, and POM may be suitable for flexible features in specific applications, but they should not automatically be treated as direct alternatives to polypropylene living hinges.

Material grade data and prototype testing are essential.

Avoid Highly Reinforced Materials

Glass-filled and mineral-filled plastics are generally unsuitable for conventional living hinges.

Reinforcement increases stiffness and can reduce the material’s ability to withstand repeated flexing. Fibers may also become damaged or create weak points along the hinge line.

If a rigid reinforced material is required for the main part, engineers may need to consider:

• A separate hinge component
• Multi-material molding
• An elastomeric connection
• A mechanical pin hinge
• A revised product architecture

Living Hinge Thickness

Hinge thickness directly affects flexibility, strain, molding consistency, and service life.

A thicker hinge:

• Requires more bending force
• Produces greater internal stress
• May not fold completely
• Can create stress at the hinge boundaries

A thinner hinge:

• Bends more easily
• Reduces operating force
• May fill poorly
• Can become vulnerable to tearing
• May be difficult to control consistently

For polypropylene living hinges, a thin section is normally required, but there is no universal thickness suitable for every product.

The final dimension depends on:

• Resin grade
• Part size
• Required bending angle
• Expected number of cycles
• Hinge width
• Mold filling behavior
• Product temperature
• Manufacturing tolerances

The hinge should be thick enough to mold reliably but thin enough to create controlled bending.

Hinge Length and Width

The hinge length determines the distance over which bending occurs.

A longer hinge section can distribute deformation more gradually, while a very short hinge may concentrate strain in a narrow area.

Hinge width also affects performance.

A wider hinge may provide:

• Better load distribution
• Improved alignment
• Greater resistance to twisting

However, a very wide hinge may fill unevenly or experience inconsistent bending across its width.

For wide lids or covers, multiple hinge sections separated by small gaps may sometimes provide more consistent movement than one continuous wide hinge.

The correct layout depends on the load, product geometry, and mold-filling direction.

Use Smooth Transitions

The hinge should transition smoothly into the thicker rigid sections on both sides.

Abrupt thickness changes can create stress concentration and weak points at the hinge boundaries.

Good transition design may include:

• Gradual thickness changes
• Generous blending radii
• Symmetrical hinge geometry
• Removal of sharp internal corners
• Consistent material flow paths

The hinge should not appear as a thin notch cut sharply between two heavy sections.

A smooth transition helps distribute strain and reduces the likelihood of tearing where the hinge meets the rigid body.

At the same time, excessively thick radiused areas should be avoided because they may create sink marks, voids, or uneven cooling.

Hinge Groove Design

Many living hinge designs include a shallow groove or recessed area that defines the bending line.

The groove helps:

• Control where bending occurs
• Reduce hinge thickness
• Improve folding consistency
• Prevent surrounding walls from flexing
• Create a cleaner closed position

The groove may be placed on one side or both sides of the hinge, depending on the required bending direction and product geometry.

A one-sided groove encourages the hinge to fold in a preferred direction. A symmetrical groove may support more balanced movement but requires careful review of moldability and minimum thickness.

The groove should use smooth radii rather than sharp V-shaped corners.

Hinge Bending Direction

A living hinge should be designed for a clearly defined bending direction.

The product geometry should guide the hinge into the intended motion without twisting, lateral loading, or interference.

Engineers should review:

• Opening direction
• Maximum rotation angle
• Closed position
• Overtravel
• Lid alignment
• Nearby ribs or walls
• User operating force

For a hinge intended to rotate approximately 180 degrees, enough clearance must be provided so that the connected sections do not collide or place excessive compression on the hinge.

The hinge should not be forced beyond its intended bending range during assembly or use.

Gate Location and Material Flow

Gate location is critical to living hinge performance.

Ideally, material should flow across the hinge in a direction that promotes strong molecular orientation along the hinge length.

Poor gate placement may create:

• Weld lines in the hinge
• Incomplete filling
• Uneven molecular orientation
• Weak hinge edges
• Air traps
• Inconsistent thickness

A weld line crossing the hinge can significantly reduce fatigue strength and increase the risk of cracking.

The gate should be positioned so the hinge fills uniformly and remains well packed without excessive pressure or shear.

For wide hinges, balanced flow across the entire width is especially important.

Mold-flow analysis may be useful for evaluating:

• Flow direction
• Pressure loss
• Temperature distribution
• Weld-line location
• Air-trap risk
• Filling balance

Mold Design Considerations

Living hinges require precise mold construction because the hinge section is thin and sensitive to dimensional variation.

Important tooling considerations include:

Accurate Hinge Thickness

Small dimensional changes can significantly affect bending force and fatigue life.

The mold must control the hinge section consistently across all cavities.

Proper Venting

Thin hinge sections may trap air as the cavity fills.

Adequate venting helps reduce:

• Burn marks
• Short shots
• Weak hinge edges
• Surface defects

Uniform Cooling

Uneven cooling may cause the lid and body to warp or misalign.

Cooling channels should support consistent temperature control around both rigid sections and the hinge area.

Surface Finish

The hinge surface should be smooth and free from machining marks, sharp edges, or damage that could initiate cracking.

Mold Opening Direction

The part should be oriented so that the hinge geometry can be molded and ejected without distortion.

The tooling design must also account for the open molded position of the lid and body.

Mold the Hinge in the Open Position

Living-hinge parts are generally molded with the connected sections in an open or nearly flat position.

This approach provides several advantages:

• Easier cavity filling
• Simpler mold construction
• More uniform hinge thickness
• Reduced tooling complexity
• Better ejection

After molding, the hinge may require an initial flexing operation to establish the bending line.

This conditioning step is sometimes called flexing or working the hinge. It helps align the material structure and allows the hinge to operate more consistently during use.

The first flexing process should be controlled to avoid excessive speed, twisting, or overstressing the hinge.

Draft and Ejection

The rigid walls surrounding the hinge still require adequate draft for reliable ejection.

Ejector pins should be positioned so that they do not:

• Press directly on the thin hinge
• Bend the lid during ejection
• Create local stress
• Distort the hinge groove

Ejection force should be distributed across stronger areas of the part.

The molded part must also have enough support to prevent the hinge from stretching or tearing as it leaves the mold.

Common Living Hinge Design Mistakes

1. Using the Wrong Material

A rigid or highly reinforced resin may crack after only a few cycles.

Better approach: Select a material grade with proven fatigue and flexural performance.

2. Making the Hinge Too Thick

A thick hinge requires excessive force and creates high bending stress.

Better approach: Use a controlled thin section appropriate for the material and required service life.

3. Making the Hinge Too Thin

An extremely thin hinge may tear, fill inconsistently, or vary between production cycles.

Better approach: Balance flexibility with molding reliability and tolerance capability.

4. Adding Sharp Transitions

Sharp corners at the hinge boundaries create stress concentration.

Better approach: Use smooth radii and gradual transitions into the rigid sections.

5. Placing a Weld Line Across the Hinge

A weld line may create a weak path through the most highly flexed area.

Better approach: Optimize gate position and flow direction during DFM review.

6. Ignoring the Closed Position

A hinge may work in the open position but become overloaded when the lid is fully closed.

Better approach: Review interference, compression, alignment, and required rotation throughout the full motion.

7. Failing to Consider Creep

If the hinge remains under continuous strain, it may permanently deform.

Better approach: Design the closed position so the hinge is not unnecessarily stretched or loaded.

8. Skipping Cycle Testing

A hinge that survives initial assembly may still fail after repeated use.

Better approach: Test representative molded parts through the expected number of operating cycles.

Prototype and Validate the Design

Living hinges should be tested using production-representative materials and geometry.

Important validation checks include:

• Initial opening force
• Closing force
• Maximum bending angle
• Hinge alignment
• Stress whitening
• Tearing
• Permanent deformation
• Cycle life
• Performance after aging
• Temperature and chemical exposure

A 3D-printed hinge may help evaluate general movement and clearances, but it may not accurately represent the fatigue behavior of an injection molded hinge.

Prototype molds or production-intent samples provide more reliable validation.

Living Hinge Design Checklist

Before releasing a living-hinge part for tooling, confirm that:

• The material is suitable for repeated flexing
• The required number of cycles is defined
• Hinge thickness is appropriate
• Hinge width and length support even bending
• Transitions into rigid walls are smooth
• Sharp corners have been removed
• The bending direction is clearly controlled
• The full opening and closing motion has been reviewed
• Gate location supports strong flow through the hinge
• Weld lines are kept away from the hinge
• Venting and cooling have been considered
• The part can be molded in an open position
• Ejection will not damage the hinge
• Representative cycle testing is planned

Frequently Asked Questions

1. What is the best plastic for a living hinge?

Polypropylene is the most common choice because of its flexibility and fatigue resistance. The exact grade should be selected according to stiffness, impact performance, chemical exposure, and operating conditions.

2. Can ABS be used for a living hinge?

ABS may be used for limited-flex or low-cycle features, but it generally does not provide the same repeated-flex performance as polypropylene. Testing is required for the intended application.

3. How thin should a living hinge be?

The correct thickness depends on the resin grade, hinge dimensions, bending angle, and expected cycle life. It must be thin enough to flex but thick enough to fill and mold consistently.

4. Why should a living hinge be molded open?

An open molded position usually simplifies tooling, improves filling, supports consistent hinge geometry, and makes part ejection easier.

5. Can a living hinge open 180 degrees?

Yes, provided the hinge geometry, clearance, material, and surrounding components are designed for that range of movement.

6. Why do living hinges crack?

Common causes include incorrect material, excessive thickness, sharp transitions, weld lines, poor flow orientation, excessive bending, and environmental degradation.

Need Engineering Support?

A reliable living hinge requires careful coordination between material selection, hinge geometry, flow direction, mold design, and durability testing.

The AccuMolds engineering team can review your living-hinge design, wall thickness, material requirements, gate location, mold feasibility, and expected operating life before tooling begins.

Our engineering support includes:

• DFM analysis
• Plastic part design review
• Material recommendations
• Mold-flow considerations
• Prototype development
• Precision mold manufacturing
• Injection molding production

👉 Request a Quote
