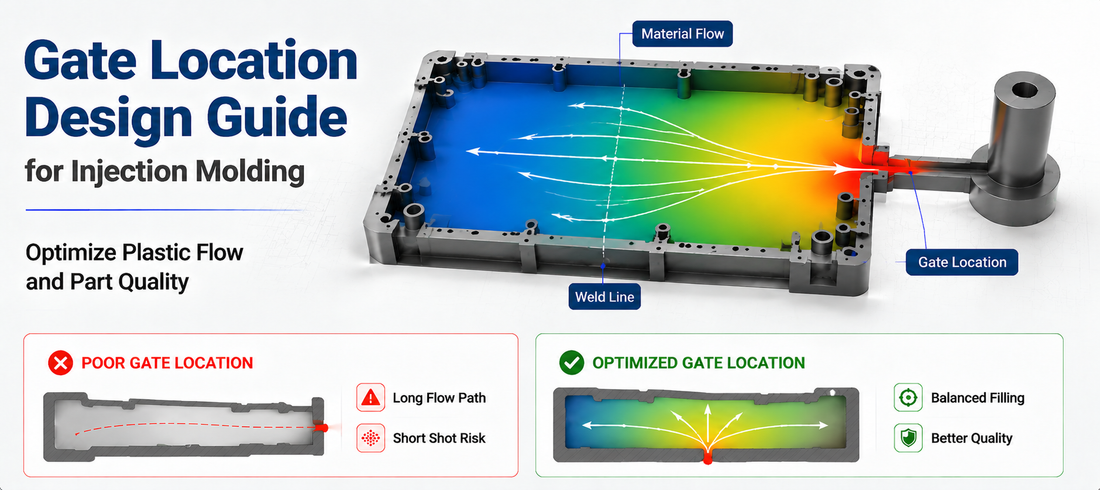

Gate Location Design

Introduction

Gate location is one of the most important decisions in injection molding part design. The gate determines how molten plastic enters the mold cavity, how the material flows, and how the part fills during the injection process.

A properly selected gate location helps achieve:

• Uniform filling
• Reduced weld lines
• Lower warpage
• Better surface appearance
• Improved dimensional stability

On the other hand, an improper gate location can cause common molding issues such as short shots, sink marks, flow marks, air traps, uneven shrinkage, and excessive residual stress.

For product designers and engineers, considering gate location during the early design stage helps reduce tooling risks, improve part quality, and avoid costly mold modifications.

This guide explains injection molding gate location principles, common gate placement strategies, design considerations, and DFM recommendations.

What Is Gate Location in Injection Molding?

The gate is the entry point where molten plastic flows from the runner system into the mold cavity.

Gate location refers to the position where the gate is placed on the part.

During injection molding:

1. Molten plastic enters through the gate
2. Material flows through the cavity
3. The cavity fills under pressure
4. The plastic cools and solidifies

The gate position directly affects:

• Flow direction
• Filling pattern
• Cooling behavior
• Weld line location
• Part appearance

Because of this, gate location should be considered as part of the overall part design, not only a tooling decision.

Why Gate Location Matters in Injection Molding

1. Controls Material Flow Pattern

The gate determines how plastic travels through the mold cavity.

A good gate location allows:

• Shorter flow distance
• Balanced filling
• Lower injection pressure

A poor gate location may create:

• Uneven filling
• Hesitation during flow
• Incomplete filling

2. Reduces Injection Molding Defects

Proper gate placement helps prevent common defects:

Short Shots

When plastic cannot fully fill the cavity.

Weld Lines

When two flow fronts meet and create a weak line.

Warpage

Caused by uneven cooling and shrinkage.

Air Traps

Created when air cannot escape before filling completes.

3. Improves Part Appearance

Gate location affects visible surface quality.

For cosmetic parts, engineers typically avoid placing gates on:

• Visible exterior surfaces
• High-quality cosmetic areas
• Customer-facing surfaces

Instead, gates are often positioned in:

• Hidden areas
• Non-critical surfaces
• Assembly interfaces

Gate Location Design Principles

1. Place Gates at Thick Sections

Plastic flows more easily through thicker areas.

Recommended:

• Place gates near thicker sections when possible

• Allow material to flow from thick areas toward thinner areas

Benefits:

• Better packing
• Reduced shrinkage
• Improved dimensional accuracy

2. Use Balanced Filling Paths

The ideal gate location allows plastic to fill the cavity evenly.

A balanced flow path reduces:

• Pressure differences
• Uneven shrinkage
• Internal stress

For complex parts, mold flow analysis can help evaluate the best gate position before tooling.

3. Avoid Long Flow Lengths

Long flow distances increase:

• Injection pressure requirements
• Filling difficulty
• Risk of short shots

A well-positioned gate minimizes the distance molten plastic must travel.

Common Gate Location Strategies

1. Center Gate

A gate placed near the center of the part.

Advantages:

• Balanced radial filling
• Short flow distance

Common applications:

• Round parts
• Large flat components

2. Edge Gate

A gate placed along the edge of the part.

Advantages:

• Easy tooling
• Simple gate removal

Common applications:

• Housings
• Covers
• Panels

3. Multiple Gates

Multiple gates may be used for large or complex parts.

Advantages:

• Reduced flow length
• Lower injection pressure

Considerations:

• More weld lines
• More complex tooling

Gate Location and Weld Lines

Weld lines occur when two or more plastic flow fronts meet.

They can affect:

• Mechanical strength
• Surface appearance
• Sealing performance

Design Considerations:

Avoid placing critical features near weld lines:

• Screw bosses
• Snap fits
• Structural areas
• High-stress regions

A good gate location controls where weld lines appear.

Gate Location and Cosmetic Requirements

For appearance-critical parts, gate placement requires additional consideration.

Avoid placing gates near:

• Visible surfaces
• Textured cosmetic areas
• Optical surfaces

Possible solutions:

• Place gates on hidden surfaces
• Use submarine gates
• Use hot runner systems
• Adjust parting line strategy

Common Gate Location Design Mistakes

1. Placing Gate in Thin Areas

Problem:

Thin sections restrict material flow.

Possible Issues:

• Short shots
• High injection pressure
• Incomplete filling

Solution:

Move the gate closer to thicker sections.

2. Ignoring Weld Line Locations

Problem:

Weld lines form in critical areas.

Possible Issues:

• Reduced strength
• Visible defects
• Leakage problems

Solution:

Adjust gate location to control flow meeting points.

3. Placing Gates on Cosmetic Surfaces

Problem:

Gate marks become visible.

Possible Issues:

• Poor appearance
• Additional finishing requirements

Solution:

Locate gates in hidden or non-functional areas.

Gate Location and DFM Review

A professional DFM review evaluates gate location before mold manufacturing.

Engineers typically analyze:

1. Flow Simulation

Evaluate:

• Filling pattern
• Pressure requirements
• Weld line positions

2. Part Geometry

Review:

• Wall thickness
• Feature locations
• Flow direction

3. Material Selection

Different materials have different:

• Flow characteristics
• Shrinkage behavior
• Processing requirements

4. Tooling Requirements

Consider:

• Gate type
• Runner design
• Mold structure
• Ejection strategy

Early gate location analysis helps prevent expensive tooling changes.

Gate Location Best Practices for Injection Molding

• Place gates near thicker sections

• Maintain balanced filling paths

• Avoid critical cosmetic surfaces

• Control weld line locations

• Minimize flow distance

• Consider material flow behavior

• Use mold flow analysis for complex parts

• Review gate location during DFM analysis

Conclusion

Gate location is a critical factor in injection molding success. The right gate position improves filling performance, reduces defects, and helps achieve consistent part quality.

By considering material flow, part geometry, cosmetic requirements, and tooling constraints during the design stage, engineers can create parts that are easier to manufacture and more reliable in production.

Working with an experienced injection molding partner during the early design phase helps optimize gate placement and reduce manufacturing risks.
