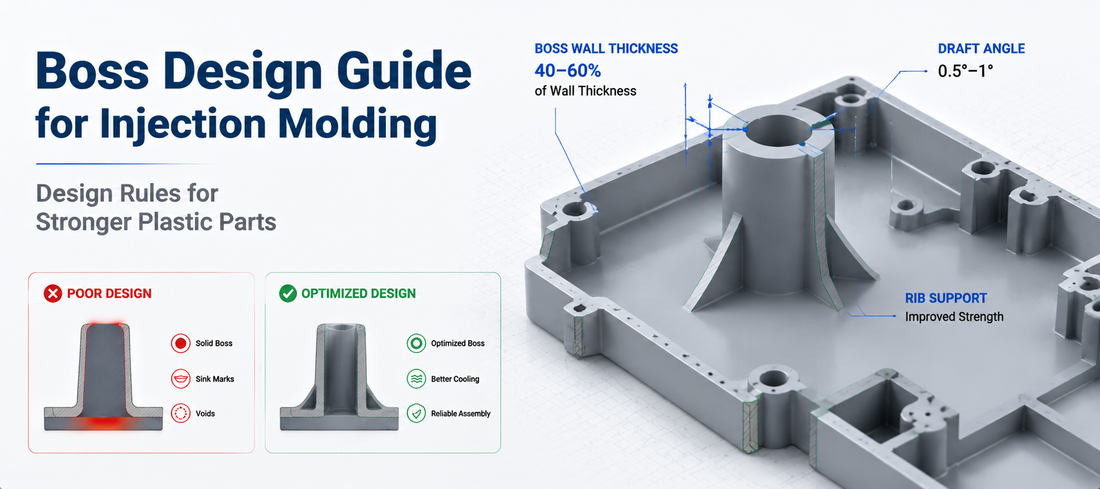

Boss Design Guide

Introduction

Bosses are one of the most widely used design features in injection molded plastic parts. They provide secure locations for screws, inserts, alignment pins, and assembly connections without requiring additional components or excessive material thickness.

However, poorly designed bosses can create common injection molding problems such as sink marks, voids, cracking, warpage, and difficult ejection.

For product designers and engineers, optimizing boss geometry during the early design stage is essential for achieving strong, reliable, and manufacturable plastic components.

This guide explains injection molding boss design principles, recommended dimensions, wall thickness guidelines, common mistakes, and DFM considerations to help engineers create better plastic parts.

What Are Bosses in Injection Molded Parts?

Bosses are cylindrical features molded into plastic components that provide mounting points for screws, inserts, or alignment features.

Common applications include:

• Screw mounting locations
• Threaded inserts
• Component positioning
• Assembly alignment
• Structural reinforcement

A well-designed boss provides mechanical strength while maintaining proper material distribution for consistent molding performance.

Why Boss Design Matters in Injection Molding

1. Provides Strong Assembly Points

Bosses are commonly used for:

• Self-tapping screws
• Machine screws with inserts
• Snap-fit components
• Fastening brackets

Proper boss design ensures reliable assembly while reducing the risk of cracking or failure during installation.

2. Prevents Injection Molding Defects

Because bosses create localized thick sections, improper designs can affect cooling behavior.

Common defects include:

• Sink marks
• Voids
• Uneven shrinkage
• Warpage

Optimized boss geometry helps maintain uniform material thickness and improves part quality.

3. Improves Product Reliability

A properly designed boss must balance:

• Strength
• Material usage
• Moldability
• Assembly requirements

Overly thick bosses may appear stronger, but they often increase manufacturing risks and reduce cosmetic quality.

Boss Wall Thickness Design Guidelines

One of the most important rules in boss design is controlling boss wall thickness.

1. Recommended Boss Thickness

General guideline:

Boss wall thickness should typically be 40–60% of the surrounding wall thickness.

Example:

If the nominal wall thickness is:

• 2.5 mm

Recommended boss wall thickness:

• Approximately 1.0–1.5 mm

2. Why Avoid Solid Bosses?

A solid boss creates a thick mass of plastic.

This can cause:

• Slow cooling
• Increased shrinkage
• Internal voids
• Sink marks on opposite surfaces

Instead, a hollow boss with proper support provides strength while maintaining better material distribution.

Boss Height Design Guidelines

Boss height affects both strength and manufacturability.

Recommended practices:

• Avoid unnecessarily tall bosses

• Keep boss height proportional to diameter

• Use ribs or gussets for additional support when needed

Very tall bosses may create:

• Filling difficulties
• Increased cooling time
• Higher ejection resistance

For deep bosses, engineers should evaluate mold filling and tooling requirements.

Boss Diameter Design Guidelines

Boss diameter depends on:

• Screw size
• Insert requirements
• Assembly loads
• Material properties

General recommendations:

• Avoid oversized outer diameters
• Maintain sufficient wall thickness around the boss
• Consider screw installation stress

The boss should provide enough support without creating excessive material thickness.

Boss Draft Angle Design

Bosses require draft angles to allow smooth mold release.

Recommended:

• Outer boss wall: approximately 0.5°–1° draft
• Inner hole surfaces: add draft where possible

Proper draft reduces:

• Ejection force
• Surface damage
• Mold wear

Bosses without sufficient draft may stick to the mold core and create production issues.

Adding Ribs and Gussets to Bosses

For high-load applications, bosses often require additional reinforcement.

Recommended Reinforcement Methods:

1. Use Supporting Ribs

Ribs can increase boss strength without significantly increasing boss thickness.

Benefits:

• Improved stiffness
• Better load distribution
• Reduced material usage

2. Use Gussets

Gussets provide angled support between the boss and base wall.

They help prevent:

• Boss cracking
• Bending under load
• Mechanical failure

Common Boss Design Mistakes

1. Designing Solid Bosses

Problem:

A fully solid boss creates excessive material thickness.

Possible Issues:

• Sink marks
• Voids
• Longer cooling time

Solution:

Use hollow bosses with proper wall thickness.

2. Making Bosses Too Thick

Problem:

Thick bosses cool differently from surrounding walls.

Possible Issues:

• Surface defects
• Uneven shrinkage
• Dimensional variation

Solution:

Maintain boss thickness around 40–60% of wall thickness.

3. Adding Bosses Without Draft

Problem:

Straight boss walls increase friction during ejection.

Possible Issues:

• Part sticking
• Boss deformation
• Mold damage

Solution:

Add appropriate draft angles.

4. Placing Bosses Too Close to Walls

Problem:

A boss located directly against a wall creates a thick section.

Possible Issues:

• Sink marks
• Uneven cooling

Solution:

Maintain proper spacing or connect using designed ribs.

Boss Design Best Practices for Injection Molding

• Keep boss wall thickness at 40–60% of nominal wall thickness

• Avoid solid bosses whenever possible

• Add draft angle for easier ejection

• Use ribs or gussets for additional strength

• Maintain uniform material distribution

• Avoid placing bosses directly against thick walls

• Consider screw and insert requirements early

• Review boss geometry during DFM analysis

Boss Design Considerations During DFM Review

A professional DFM review evaluates boss features before mold manufacturing.

Engineers typically analyze:

1. Material Distribution

Check whether boss geometry creates thick sections that may cause defects.

2. Mold Filling

Evaluate:

• Plastic flow around bosses
• Weld line locations
• Filling pressure requirements

3. Ejection Requirements

Confirm bosses can release smoothly without excessive friction.

4. Assembly Requirements

Review:

• Screw size
• Insert compatibility
• Mechanical loading conditions

Early DFM analysis helps prevent costly tooling changes and improves production reliability.

Conclusion

Boss design is a critical part of injection molded component development. Properly designed bosses provide strong assembly points while maintaining manufacturability and consistent part quality.

By controlling boss thickness, height, diameter, and draft angle, engineers can reduce molding defects, improve product reliability, and create cost-effective plastic components.

Working with an experienced tooling partner during the design stage helps optimize boss structures and identify potential manufacturing risks before production begins.
